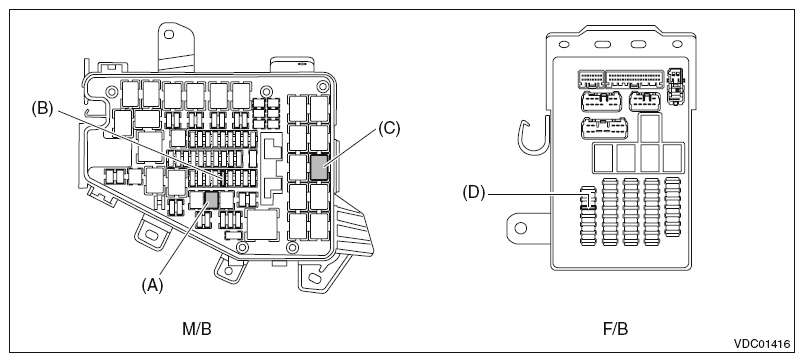

Relay and Fuse: Location
| Main fuse box (M/B) | Fuse 40 A | (A) |
| Fuse 30 A | (B) | |
| Brake light relay | (C) | |
| Fuse & relay box (F/B) | Fuse 7.5 A | (D) |
NOTE:
For details concerning other fuses and relays, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
