Parking Brake Switch: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.NOTE: For CVT models, set the select lever to the "N" position before disconnecting the battery.
- Remove the cover assembly - front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL

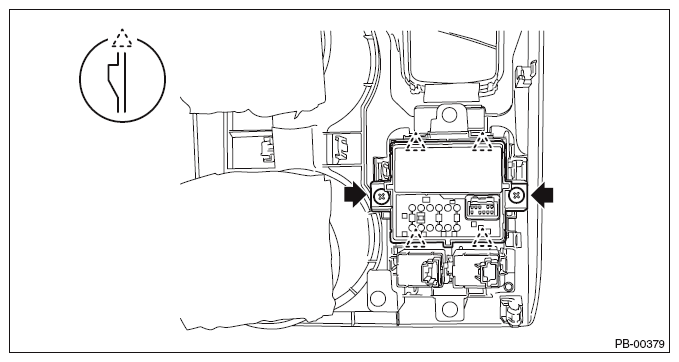

- Remove the screws to remove the switch assembly - electronic parking brake.
