Front Disc Brake

• 16-inch

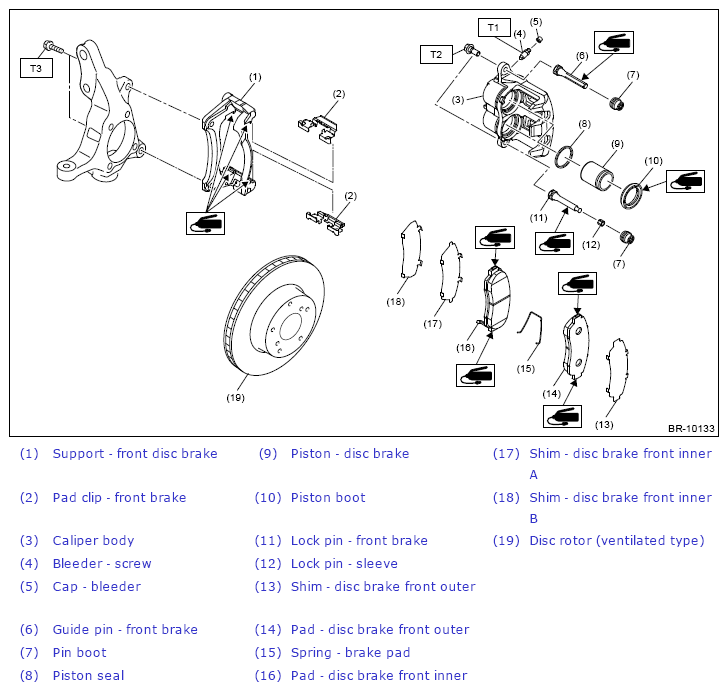

Fig 1: Front Disc Brake Components (With Torque Specification) (16-Inch)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.2)

T2: 50 (5.1, 36.9)

T3: 135 (13.8, 99.6)

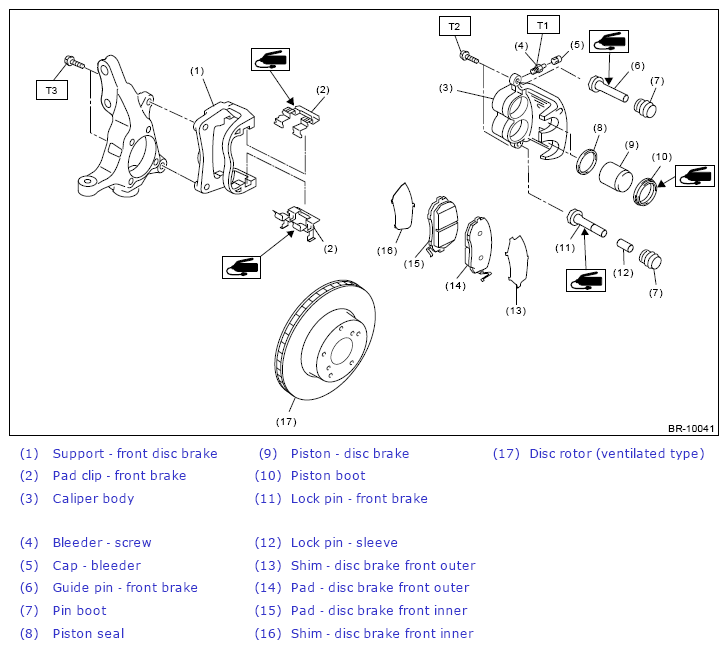

Fig 2: Front Disc Brake Components (With Torque Specification) (17-Inch)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 20.3)

T3: 135 (13.8, 99.6)
