Front Disc Brake Assembly: Disassembly

CAUTION: Be careful not to allow foreign matter to enter the brake hose connector.
  1. Remove mud and foreign matter from the caliper body assembly.
  2. Remove the piston - disc brake.
    1. Place a wooden block in the caliper body as shown in the figure to prevent the piston - disc brake from jumping out and being damaged.
    2. Using an air gun, gradually apply compressed air via the brake hose INSTALLATION hole to push out the piston - disc brake.
    NOTE: Instead of removing the pistons one by one, remove all pistons at once after adjusting the amount of protrusion evenly using a wooden block.
    G08314816Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the piston boot (b) and piston seal (c) from the caliper body cylinder (a).
    CAUTION: Do not damage the cylinder and piston seal groove.
    G08314817Courtesy of SUBARU OF AMERICA, INC.

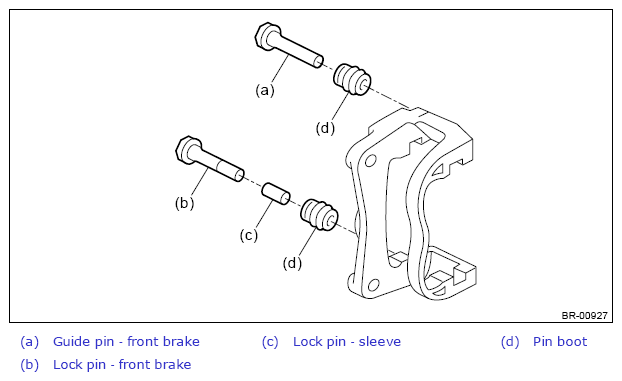

  4. Remove each part from support - front disc brake.
    G13249169Courtesy of SUBARU OF AMERICA, INC.
