When Using Piano Wire

CAUTION:
  • Do not tightly pull the piano wire against the glass - front window edge.
  • Apply protective tape, etc, and be careful that the inner and outer components of the vehicle are not damaged.
  • Do not cross piano wires. Otherwise they may be cut.
  1. Disconnect the ground terminal from battery sensor. (Models with wiper deicer) ste. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel - front pillar UPR. Ref. to EXTERIOR/INTERIOR TRIM>UPPER INNER TRIM>REMOVAL .
  3. Remove the cowl panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>COWL PANEL>REMOVAL .
  4. Disconnect the wiper deicer connector. (Models with wiper deicer)
  5. Remove the stereo camera cover assembly and stereo camera assembly. (Models with EyeSight) Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .
  6. Disconnect the connector of automatic anti-glare mirror. (Model with automatic anti-glare mirror and model with HBA)

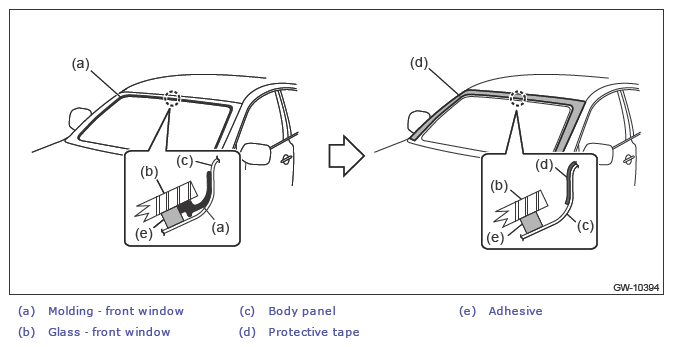

  7. Remove the molding - front window from the glass - front window, and attach protective tape on the body side of the circumference of the glass - front window.
    G13251215Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the glass - front window.

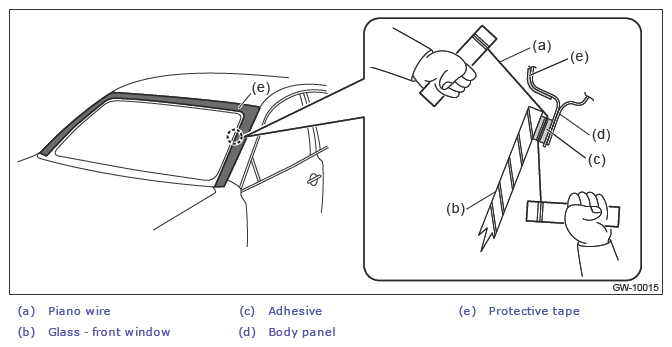

    1. Using a drill, make a hole in the adhesive part.
    2. Pass the piano wire through the hole, and pull the wire ends alternately to cut off the adhesive part and the locating pin - front window.
      CAUTION: Attach a piece of wood to both piano wire ends.
      G13251216Courtesy of SUBARU OF AMERICA, INC.
