Rear View Mirror

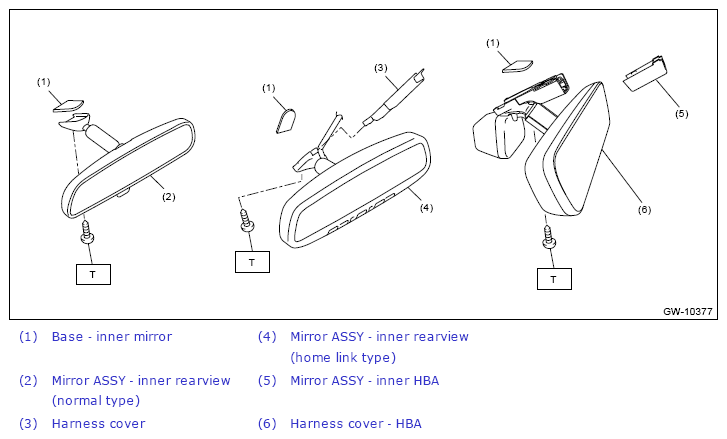

Fig 1: Rearview Mirror Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 2 (0.2, 1.5)

NOTE: Base inner mirror cannot be removed from the glass front window.
