General Description
>>
Component With Torque Specifications
>>

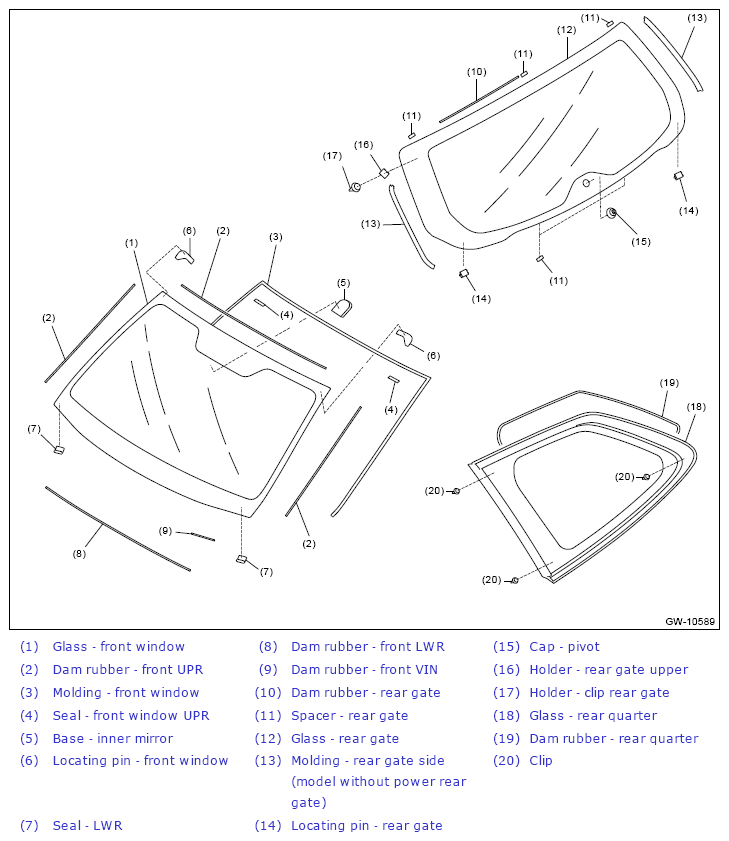

Fixed Glass (Outback Model)
Fixed Glass (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Base - inner mirror cannot be removed from the glass - front window.
Courtesy of SUBARU OF AMERICA, INC.
