Sunroof Assembly: Assembly
- Insert the cable assembly and sunshade assembly into the rail assembly - sunroof.
- Install the drain holder.

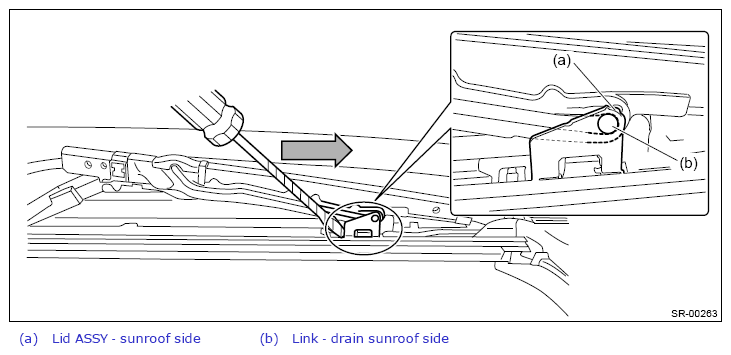

- Using a flat tip screwdriver wrapped with protective tape, move the link - drain sunroof to the foremost position of the lid assembly - sunroof.
- Install the motor assembly - sunroof.
Tightening torque:
5.4 N.m (0.6 kgf-m, 4 ft-lb)
