Component With Torque Specifications

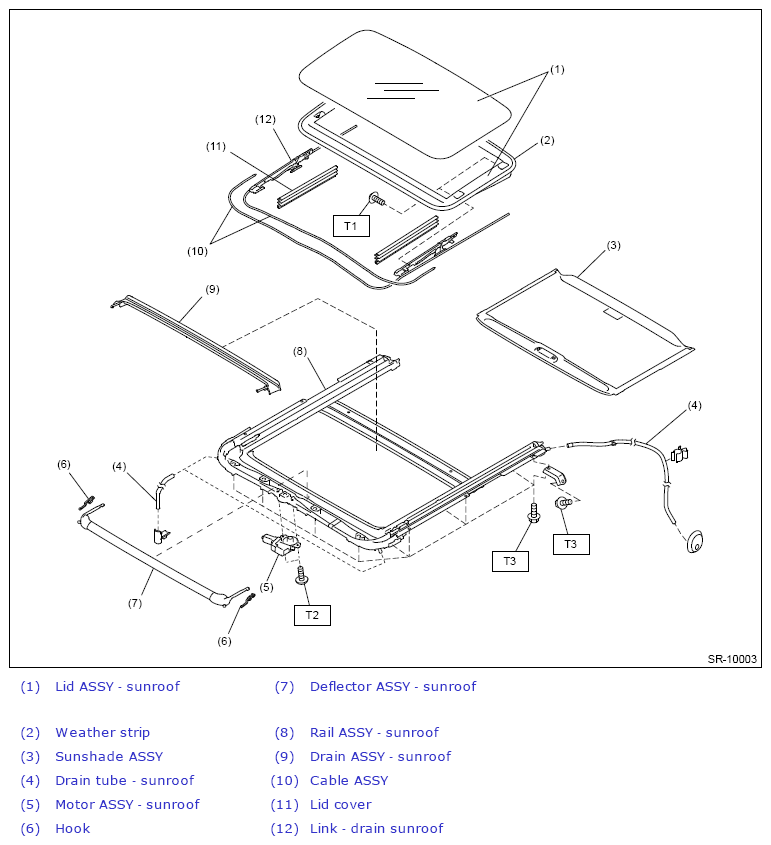

Fig 1: Sunroof/T-Top/Convertible Top (Sunroof) Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.5, 3.3)

T2: 5.4 (0.6, 4)

T3: 6 (0.6, 4.4)
