Front Seat

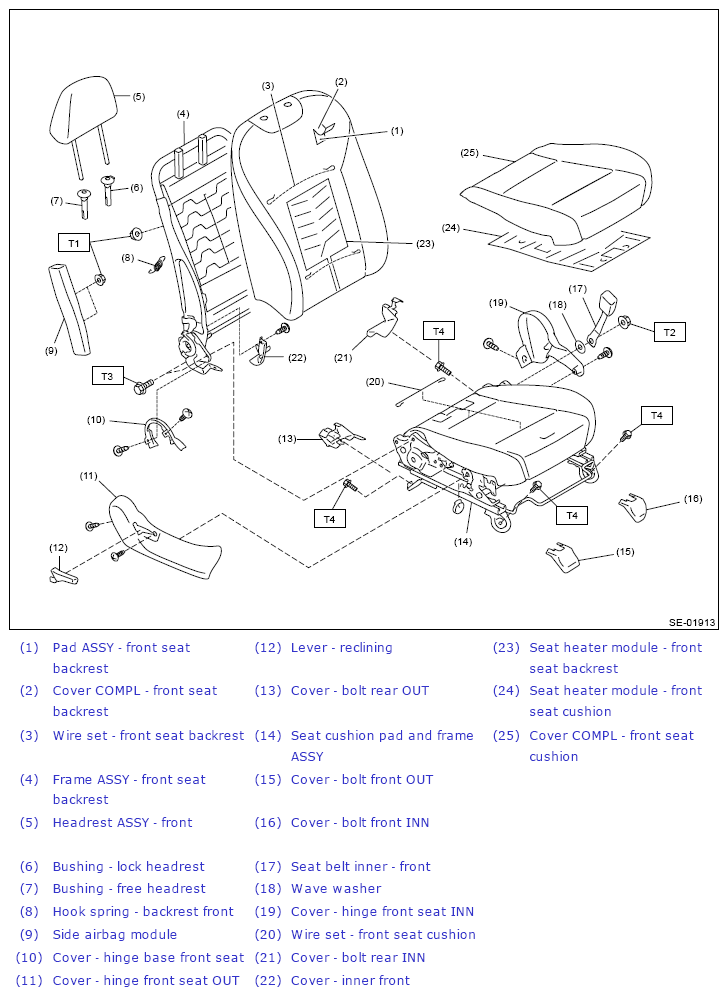

Fig 1: Front Seat Components (With Torque Specification) (Manual Seat - Driver'S Seat)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 15 (1.5, 11.1)

T3: 38 (3.9, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

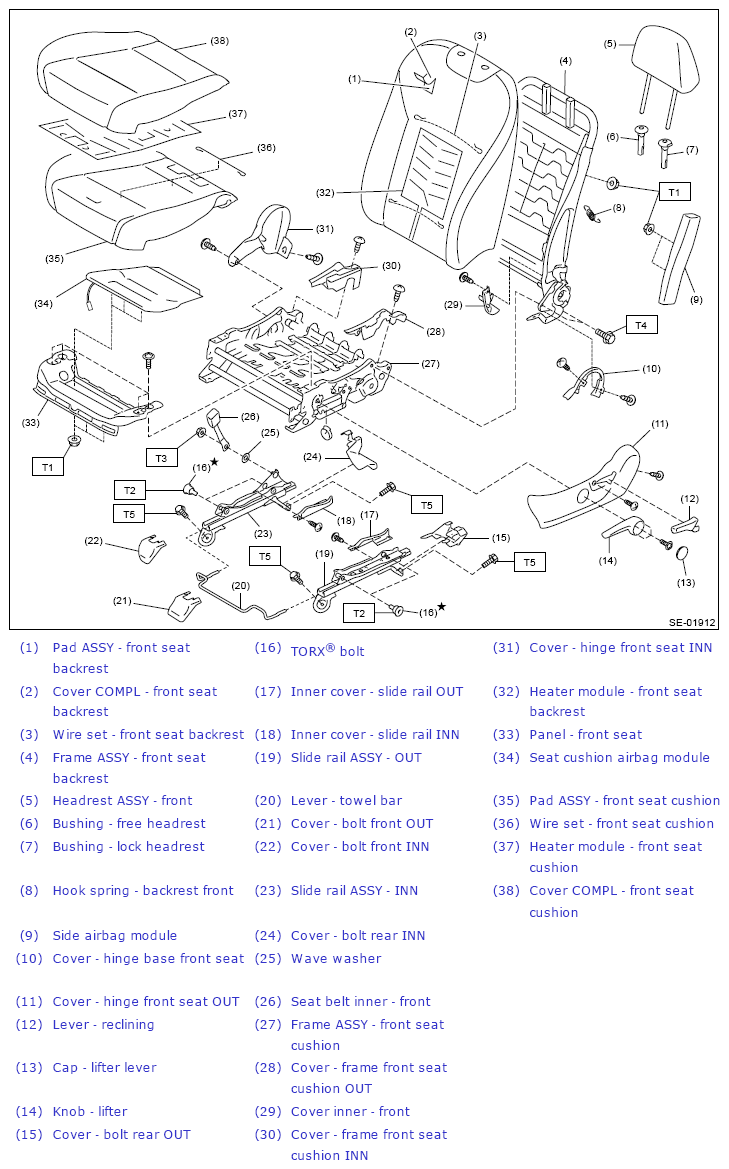

Fig 2: Front Seat Components (With Torque Specification) (Manual Seat - Passenger'S Seat)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)

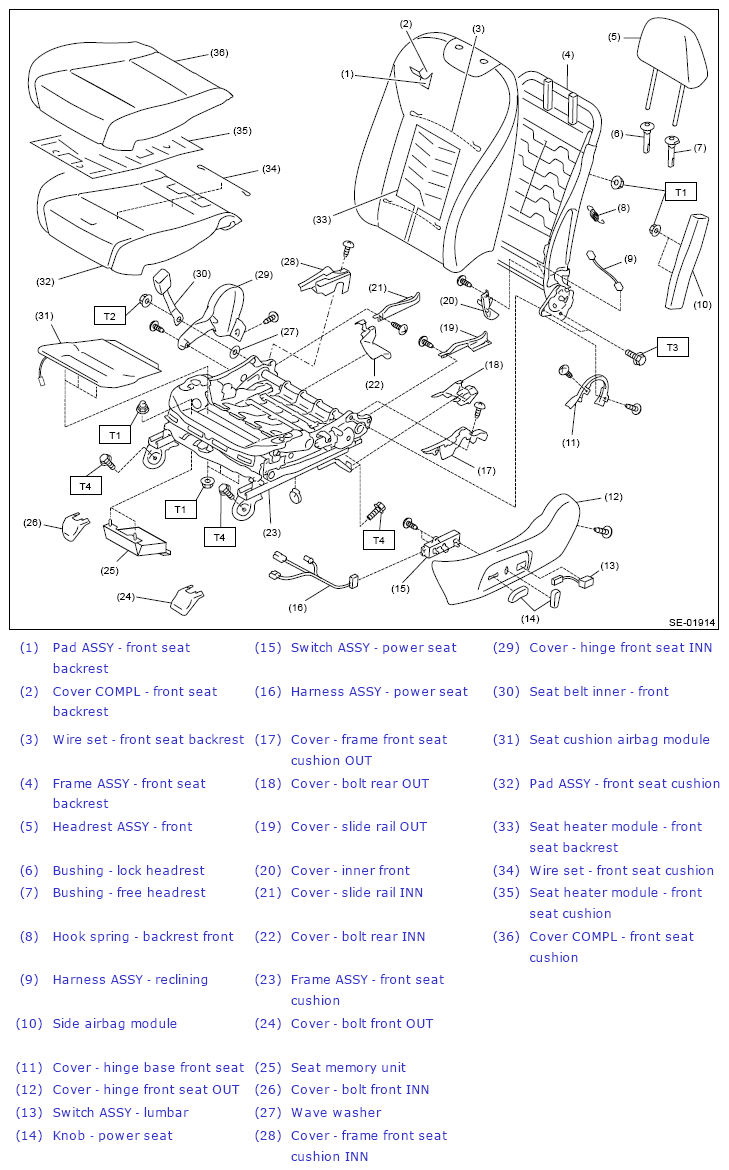

Fig 3: Front Seat Components (With Torque Specification) (Power Seat - Driver'S Seat)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)

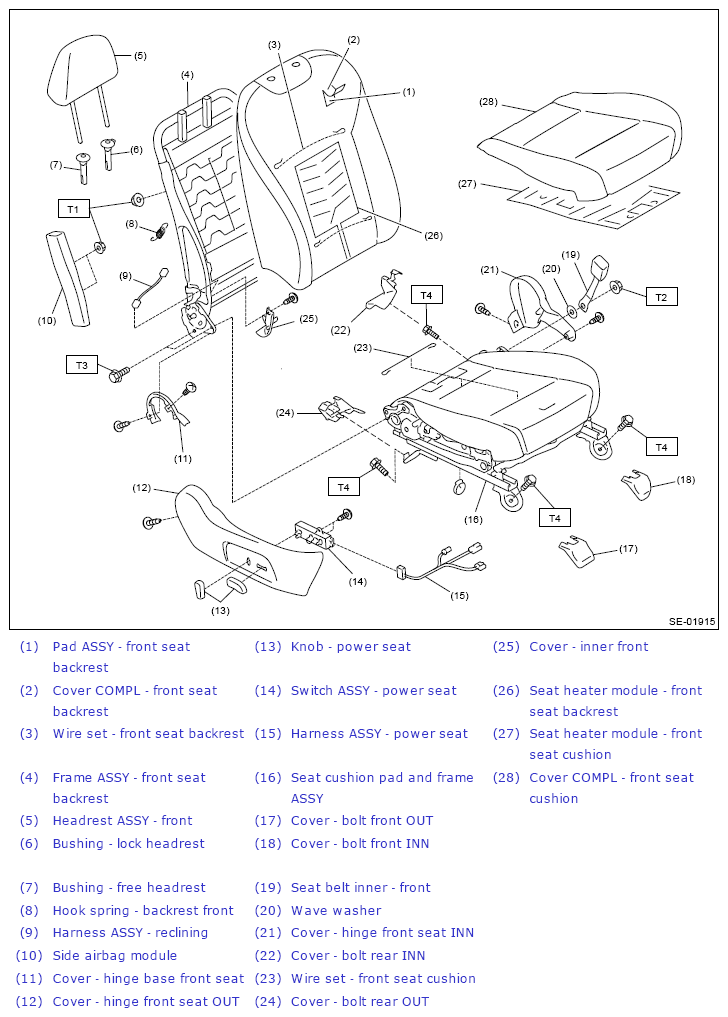

Fig 4: Front Seat Components (With Torque Specification) (Power Seat - Passenger'S Seat)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)
