Touch Sensor LWR

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .

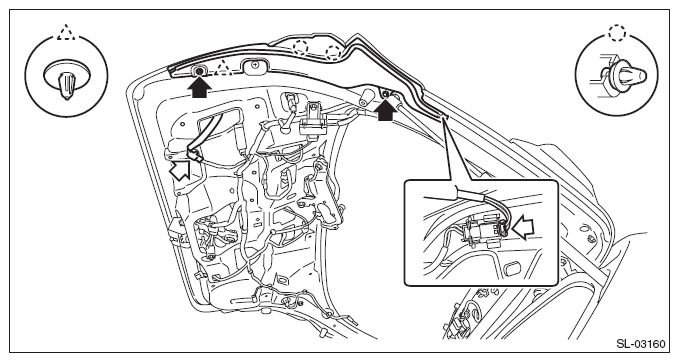

  3. Remove the power rear gate touch sensor LWR
    1. Remove the screws and clips.
    2. Disconnect the connector and remove the power rear gate touch sensor LWR.
G10309986Courtesy of SUBARU OF AMERICA, INC.
