Power Rear Gate Drive Unit: Removal

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the rod - power rear gate. Ref. to POWER REAR GATE SYSTEM>Power Rear Gate Rod>REMOVAL
Remove the trim panel - rear apron LH and trim panel - rear quarter pillar UPR rear LH PRG.
Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL

Remove the power rear gate drive unit (PRG D/U).

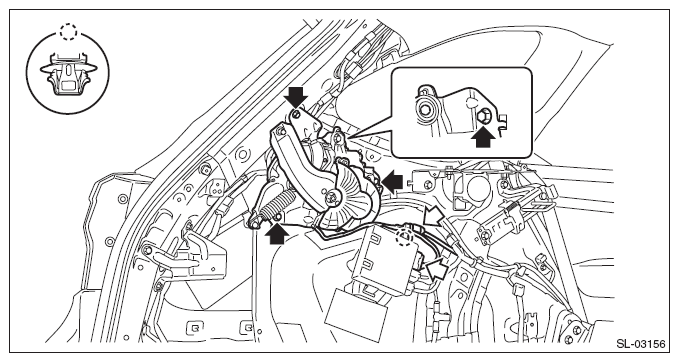

Remove the harness clip, and disconnect the connector.

NOTE: Pull the slide lock in the arrowed direction, and disconnect the PRG control module connector by pressing in the lock.

Courtesy of SUBARU OF AMERICA, INC.

Remove the bolts, and then remove the power rear gate drive unit (PRG D/U).

Courtesy of SUBARU OF AMERICA, INC.
