Keyless Access Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the combination meter assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
  3. Remove the keyless access control module.
    1. Remove the reinforcement - combination meter.
      NOTE: For model with navigation and model with telematics, remove the GPS antenna assembly. Ref. to ENTERTAINMENT & MONITORING>GPS ANTENNA>REMOVAL .

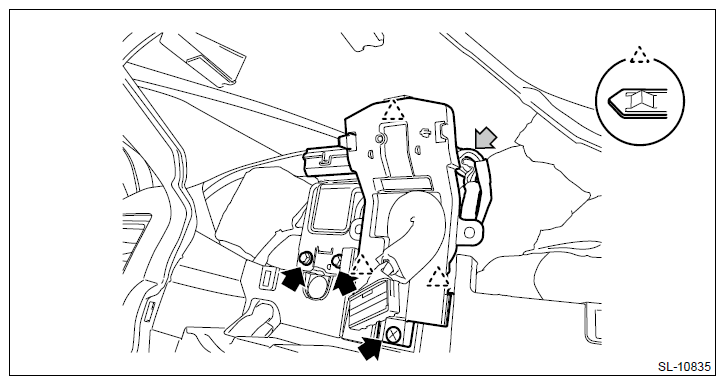

    2. Disconnect the connector and remove the bolt.
      G12408650Courtesy of SUBARU OF AMERICA, INC.
