Home >> Subaru >> 2019 >> Outback 2.5i >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Infotainment System (Diagnostics) >> Check List for Interview >> Check

Check List for Interview: Check

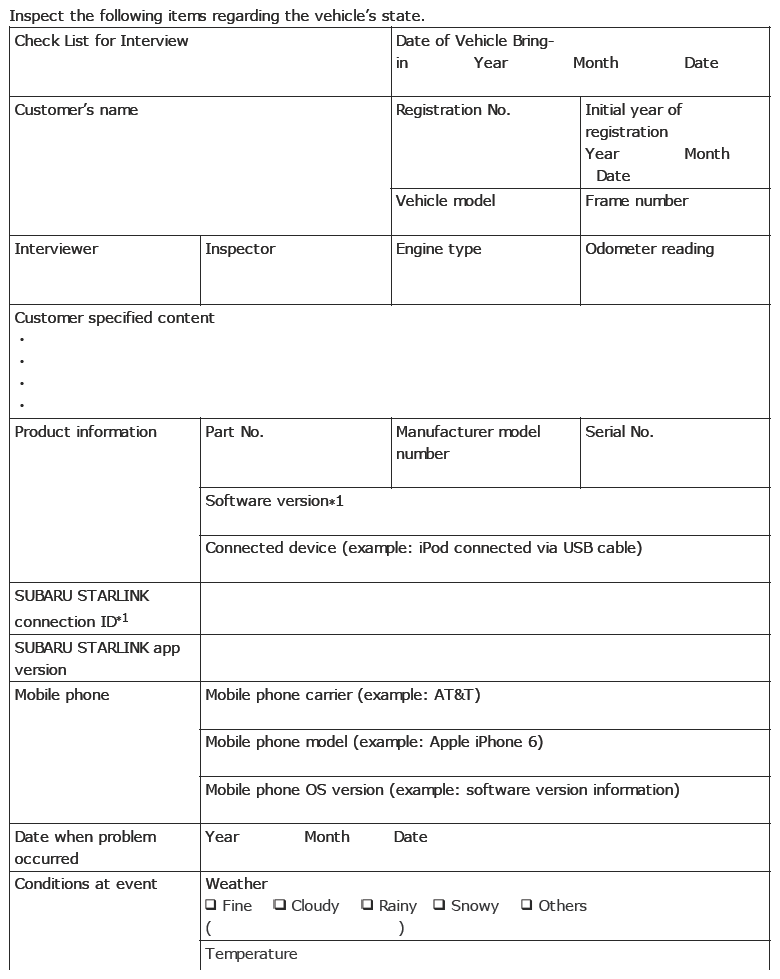

G13253685Courtesy of SUBARU OF AMERICA, INC.

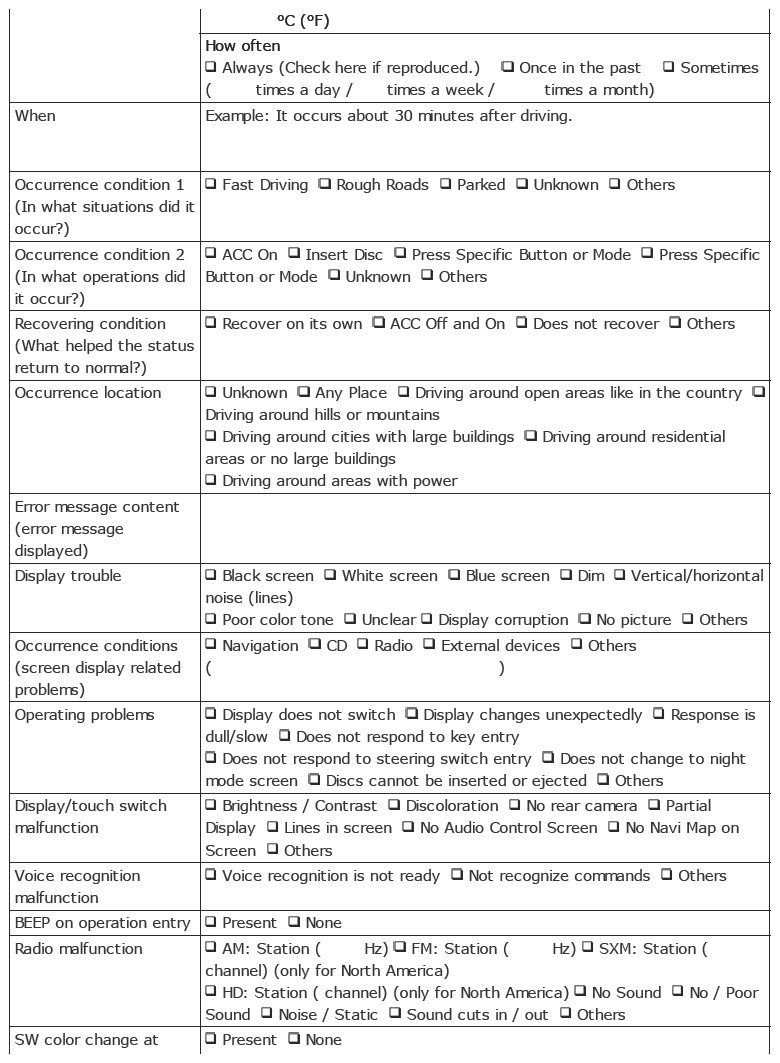

G13253686Courtesy of SUBARU OF AMERICA, INC.

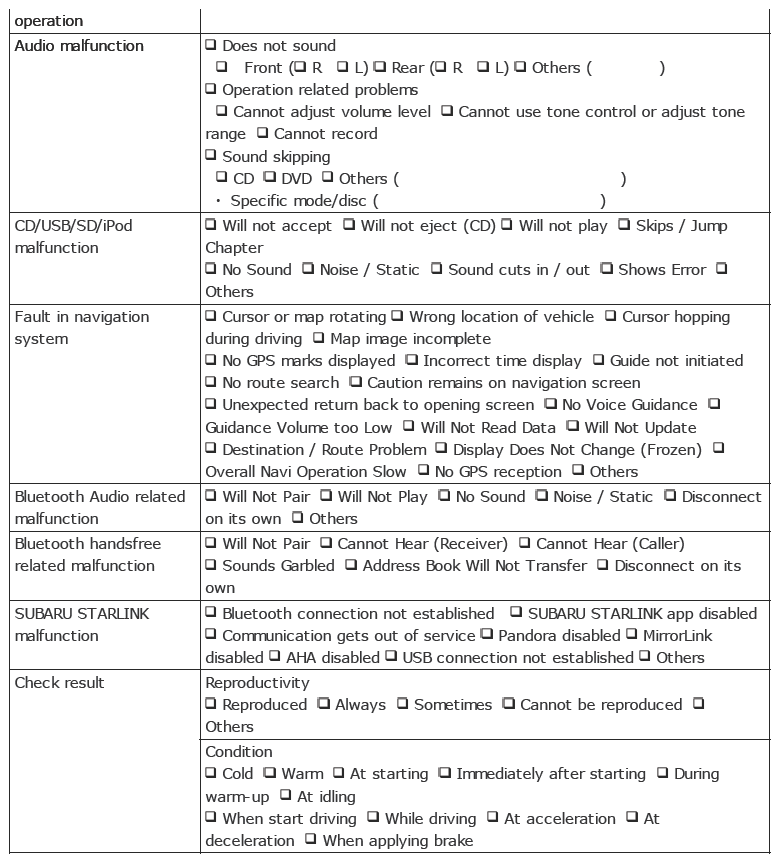

G13253687Courtesy of SUBARU OF AMERICA, INC.

*1: For each confirmation procedure, refer to Service Diagnostic Mode. Ref. to INFOTAINMENT (DIAGNOSTICS)>Service Diagnostics Mode>OPERATION .
