Jack-up point (when using a garage jack)

CAUTION: If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the jack-up plate not at the sides.

2.5 L model

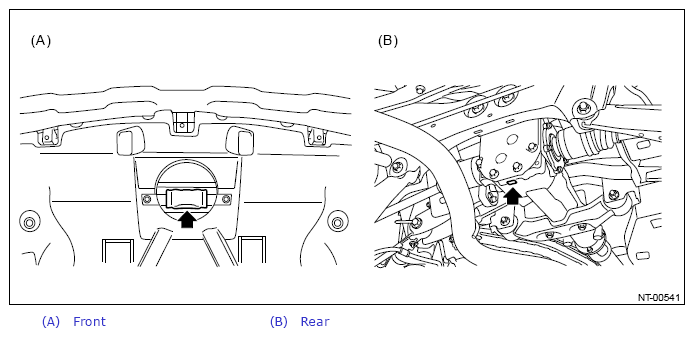

G13246556Courtesy of SUBARU OF AMERICA, INC.

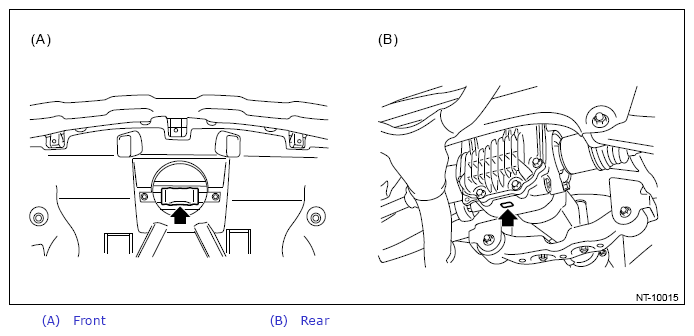

G13246557Courtesy of SUBARU OF AMERICA, INC.
