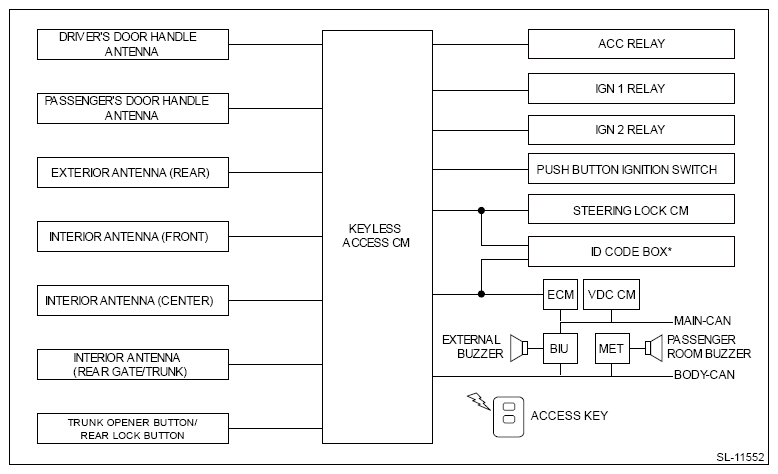

System Block Diagram

G13253524

Courtesy of SUBARU OF AMERICA, INC.

*1: For C0 and C5 only

*2: Except for C0 and C5
