Front Seat: Assembly

CAUTION:

Do not confuse the harness routing in the reverse side of the seat cushion. Assembling with harnesses improperly routed may cause the harness to get caught and short out.

If the hook - spring of the frame assembly - front backrest is deformed or comes off due to the deformation, replace the hook - spring with a new part.

Courtesy of SUBARU OF AMERICA, INC.

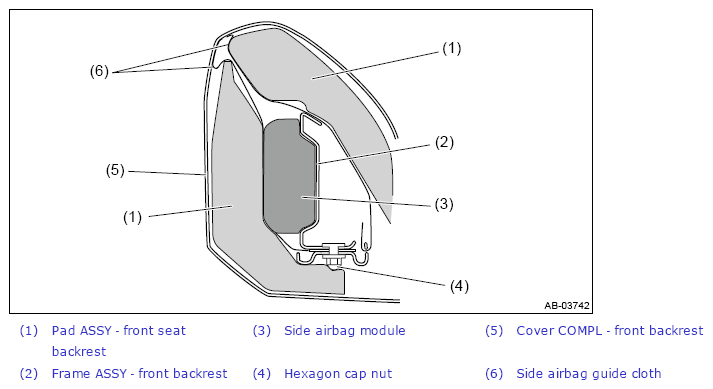

Make sure that the side airbag module is installed as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Besides, if the cover COMPL - front backrest is not installed securely, the side airbag may not be activated properly, therefore keep strictly to the following procedures.

Be careful not to stain or damage the cover COMPL - front backrest during assembly.
Do not reuse hog rings.
Secure the hog ring using hog ring pliers.
Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on the cover COMPL front backrest.

Install the seat heater module.
CAUTION:
- If the seat heater module is removed, replace the pad assembly with a new part. (Driver's seat)
- If the seat heater module is removed, replace the seat cushion pad & frame assembly with a new part. (Passenger's seat)
- If the seat heater module is reused, remove the polyurethane section from the reverse side completely and attach a new pad assembly with a double-sided tape.
Preparation items:

Double-sided tape: NITTO DENKO 501L or equivalent
Make sure that there is no foreign matter on airbag module.

Assemble the seat cover.

Adjust so that the left and right clearances between wire and seat pad become equal, and mark the seat pad.

Courtesy of SUBARU OF AMERICA, INC.

Mark the center of the wire on the pad side to which the hog ring is attached.

Courtesy of SUBARU OF AMERICA, INC.

Insert the wire into the seat cover, and align the wire with the position marked in step 1).

Courtesy of SUBARU OF AMERICA, INC.

Mark the wire on the seat cover side according to the markings on the seat pad.

Courtesy of SUBARU OF AMERICA, INC.

Perform steps 1) - 4) to all sections to which the hog rings are attached.

Make sure that all hog rings (a) are attached securely.

Courtesy of SUBARU OF AMERICA, INC.

Assemble remaining parts in the reverse order of disassemble.
NOTE:
- When installing the seat belt inner - front, follow the procedures described in the "SEAT BELT SYSTEM" service information. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION .
- When installing the seat cushion airbag module, follow the procedures described in the "AIRBAG SYSTEM" service information. Ref. to AIRBAG SYSTEM>SEAT CUSHION AIRBAG MODULE>INSTALLATION .
- Install the backrest assembly and seat cushion assembly in the following procedure.
  1. Temporarily tighten the four reclining hinge bolts.
  2. Place the backrest in the most upright position.
  3. Tighten the reclining hinge bolts in order from (1) to (4) two or three times, until they reach the specified torque.

    Fig 1: Reclining Hinge Bolts Tightening Sequence
    Courtesy of SUBARU OF AMERICA, INC.
Tightening torque:

Refer to "COMPONENT" of "General Description". Ref. to SEATS>General Description>COMPONENT>FRONT SEAT .

If any wrinkles are found after the assembly of the seat cover, finish the seat cover with iron.

Place the wet towel on wrinkles.

Courtesy of SUBARU OF AMERICA, INC.

Touch up with warm iron.

CAUTION: Keep moving the iron, otherwise the seat cover surface can be damaged.

NOTE: This method is available for genuine leather, synthetic leather, cloth, etc.

Courtesy of SUBARU OF AMERICA, INC.

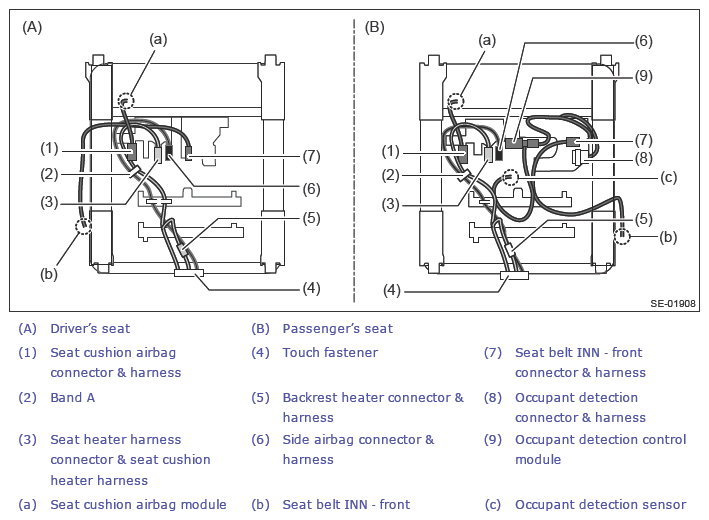

Install connectors located under the front seat.

Manual seat

Courtesy of SUBARU OF AMERICA, INC.

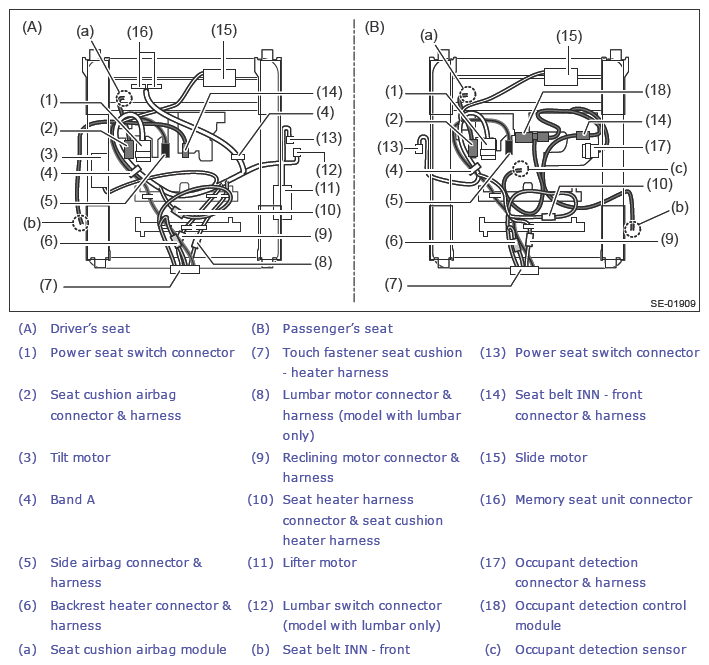

Power seat

Courtesy of SUBARU OF AMERICA, INC.

Install the seat assembly. Ref. to SEATS>Front Seat>INSTALLATION .
