Front Hood Lock Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Open the front hood.
  3. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
  4. Remove the bumper face - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  5. Remove the bracket - grille.
    G10272935Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the radiator upper brackets.
    G10276811Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the lock assembly - front hood.

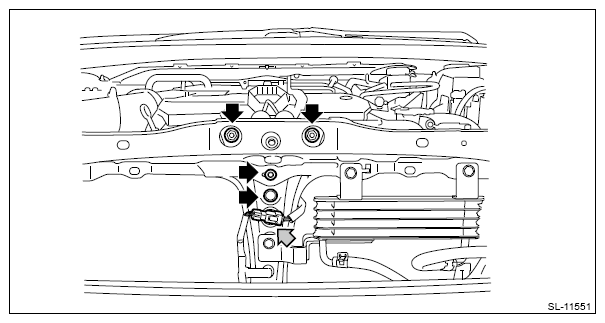

    1. Disconnect the connector, and remove the nuts and clips.
      G13251416Courtesy of SUBARU OF AMERICA, INC.
    2. Push the radiator to the rear to pull out the lock assembly - front hood through the clearance.
      G10272937Courtesy of SUBARU OF AMERICA, INC.

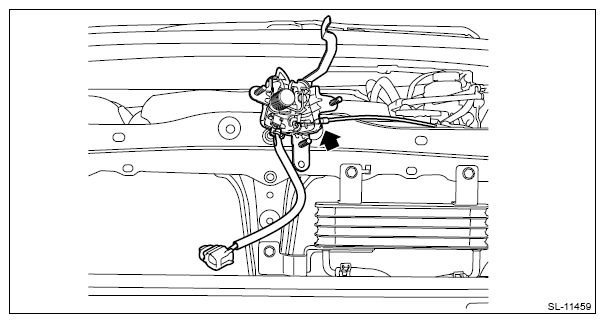

    3. Disconnect the release cable, and detach the lock assembly - front hood.
      G13251418Courtesy of SUBARU OF AMERICA, INC.
    NOTE: When disconnecting the release cable, refer to "FRONT HOOD OPENER" of "Remote Openers". Ref. to SECURITY AND LOCKS>Remote Openers>REMOVAL>FRONT HOOD OPENER
