Check Hood Switch

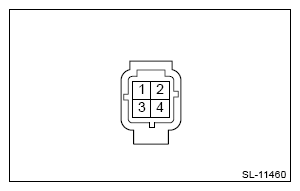

  1. Measure the resistance between connector terminals.

    Preparation tool:

    Circuit tester

    G13251421Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    1-2 Close the front hood. Less than 1 Ω
    Open the front hood. 1 MΩ or more
  2. Replace the lock assembly - front hood if the inspection result is not within the standard value.
