Torque Converter & Converter Case

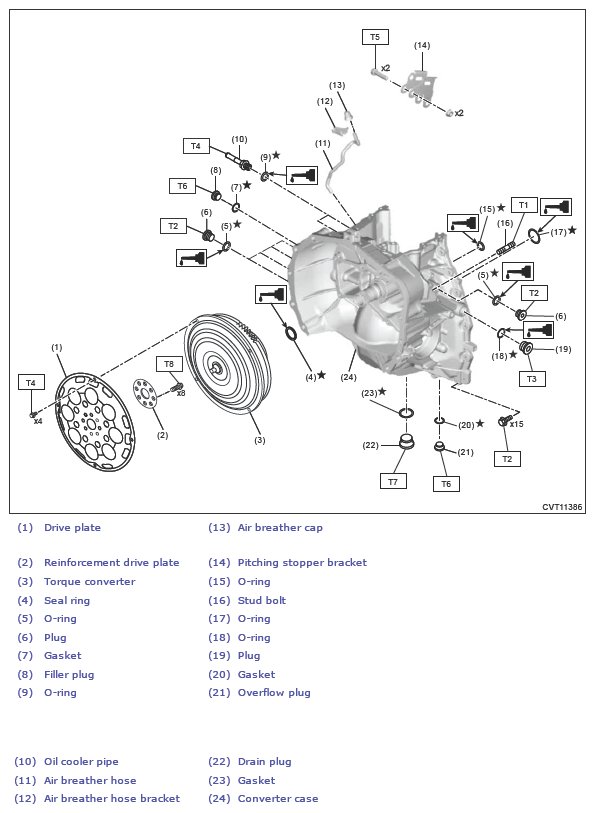

Fig 1: Torque Converter & Converter Case Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 22 (2.2, 16.2)

T3: 22.5 (2.3, 16.6)

T4: 25 (2.5, 18.4)

T5: 41 (4.2, 30.2)

T6: 50 (5.1, 36.9)

T7: 70 (7.1, 51.6)

T8:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>DRIVE PLATE>INSTALLATION .
