Rear Suspension

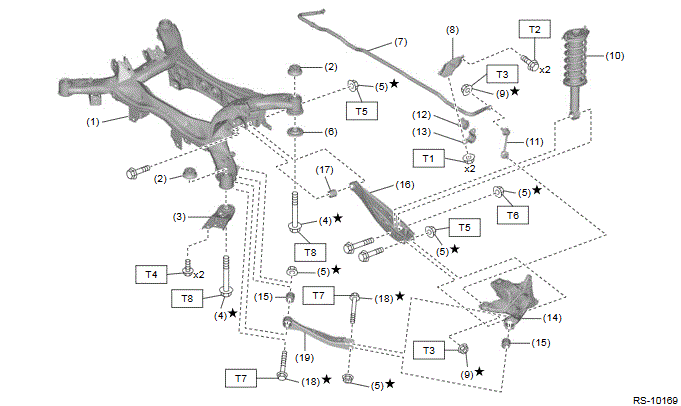

Fig 1: Rear Suspension Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

1	Sub frame assembly rear
2	Stopper upper
3	Support sub frame front
4	Flange bolt A
5	Self-locking nut
6	Stopper lower
7	Stabilizer rear
8	Bracket COMPL stabilizer
9	Flange nut
10	Shock absorber assembly rear
11	Stabilizer link rear
12	Rubber bushing stabilizer rear
13	Clamp stabilizer
14	Rear axle housing
15	Rubber bushing trailing link
16	Rear lateral link assembly rear
17	Rubber bushing link rear
18	Flange bolt B
19	Trailing link assembly rear

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 35 (3.6, 25.8)

T3: 38 (3.9, 28.0)

T4: 70 (7.1, 51.6)

T5: 82.5 (8.4, 60.8)

T6: 85 (8.7, 62.7)

T7: 100 (10.2, 73.8)

T8: 145 (14.8, 106.9)

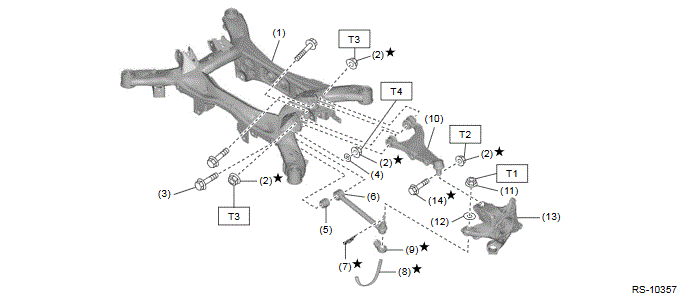

Fig 2: Rear Suspension Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

1	Sub frame assembly rear
2	Self-locking nut
3	Adjusting bolt
4	Adjusting washer
5	Rubber bushing lateral link front
6	Rear lateral link assembly front
7	Snap pin
8	Band link protector
9	Link protector
10	Arm assembly rear upper
11	Flange nut
12	Washer
13	Rear axle housing
14	Flange bolt

Tightening torque: N.m (kgf-m, ft-lb)

T1: 60 (6.1, 44.3)

T2: 80 (8.2, 59)

T3: 90 (9.2, 66.4)

T4: 100 (10.2, 73.8)
