Side Airbag Module

CAUTION: Do not reuse mounting nuts.

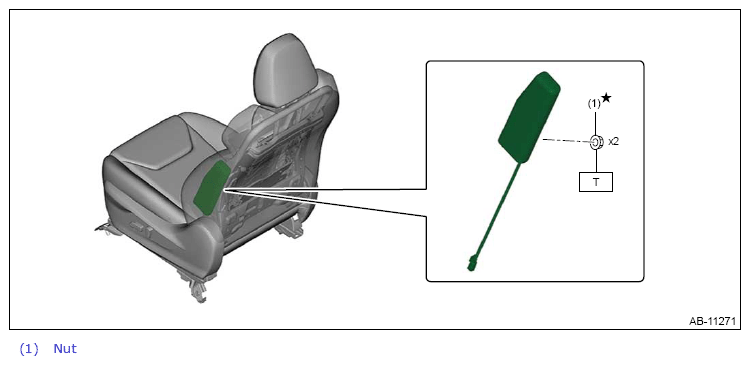

Fig 1: Side Airbag Module Nut (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)

NOTE: For operation procedures on side airbag module removal/installation, refer to the "SEATS" information. See SEAT SYSTEM - SEATS .
