Intake Manifold-Replacement Part Information (11-194-20)
Publication date: 2020-01-15Reference number: 11-194-20
INTAKE MANIFOLD-REPLACEMENT PART INFORMATION
TECHNICAL SERVICE BULLETIN
| SUBARU: | 2017-19 Forester 2.5 NA |
APPLICABILITY
2017-19MY Forester 2.5 NA
INTRODUCTION

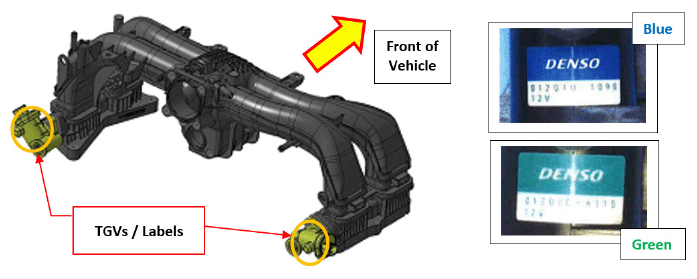

This Service Information Bulletin addresses inquiries regarding the labels applied to the tumble generator valve (TGV) motors used on certain replacement intake manifold assemblies. The TGV actuator motors are now sourced from two different Denso manufacturing facilities. Although the labels have a slightly different appearance and color (blue and green), the function of these parts is identical.
PART INFORMATION
The affected intake manifold assemblies are listed below:
| Description | Part Number | Application |
|---|---|---|
| MANIFOLD COMPLETE-INTAKE | 14001AC321 | 2017-18MY |
| 14001AC600 | 2019MY |
REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.
SERVICE PROCEDURE/INFORMATION
REMINDER: Customer satisfaction and retention starts with performing quality repairs. The service procedures for intake manifold replacement remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time and every time. This includes but is not limited to: important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.
IMPORTANT REMINDERS:
- SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
- Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
- Always refer to STIS for the latest service information before performing any repairs
