Multi-function Display (MFD): Removal

1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
3. Remove the panel center UPR, and remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .

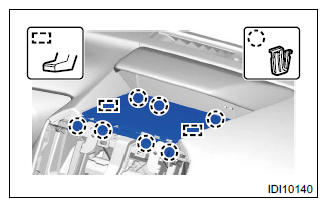

4. Remove the grille speaker assembly CTR.

   Courtesy of SUBARU OF AMERICA, INC.

   NOTE: Lightly push up the back of the grille speaker assembly CTR, hook the finger to the end portion and pull it toward you to remove it.
5. Remove the multi-function display.

CAUTION: Be careful not to damage the multi-function display or instrument panel.

1. Remove the screws and release the clip.
2. Pull the multi-function display assembly toward yourself, and disconnect the connector.

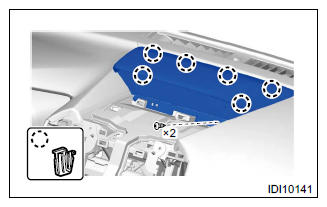

   • Model without driver monitoring system x2

     Courtesy of SUBARU OF AMERICA, INC.

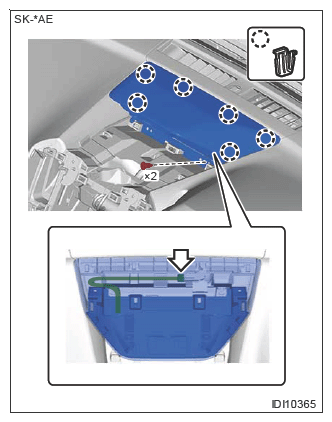

   • Model with driver monitoring system
   CAUTION: Do not disconnect the connector on the driver monitoring unit side.
   Disconnect the connector at arrow mark position.

   Courtesy of SUBARU OF AMERICA, INC.

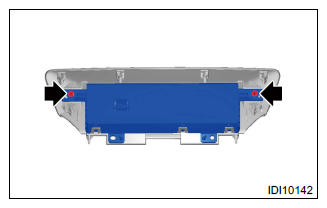

3. Remove the screws and then remove the multi-function display.

Courtesy of SUBARU OF AMERICA, INC.
