General Description
>>
Components With Torque Specifications
>>
Brake Booster
Brake Booster

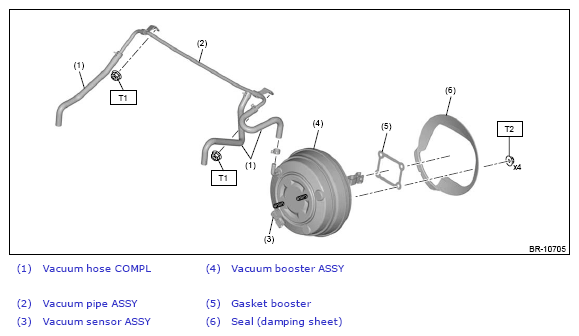

Fig 1: Brake Booster Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 18 (1.8, 13.3)
Courtesy of SUBARU OF AMERICA, INC.
