Relay and Fuse: Location

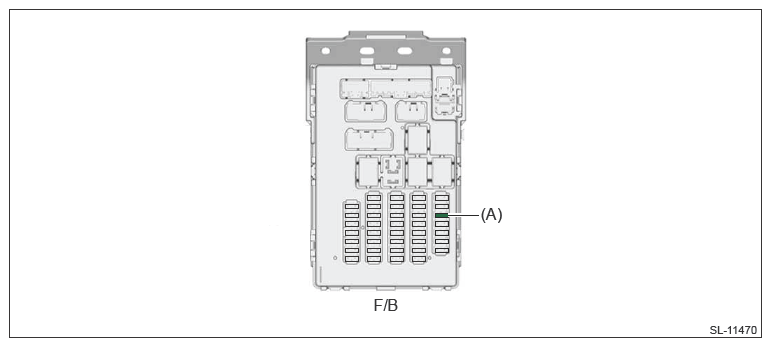

| Relay & fuse box (F/B) | Fuse 10 A (power rear gate Control Module) | (A) |
NOTE:
For other related fuses, refer to the wiring diagram.
Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
| Relay & fuse box (F/B) | Fuse 10 A (power rear gate Control Module) | (A) |
