Wiper Blade: Removal: Front

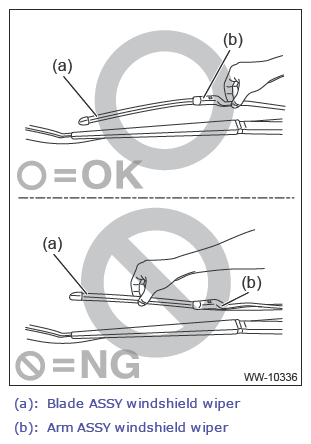

CAUTION:
  • When standing up the arm assembly windshield wiper, perform the driver's side first in order not to interfere the arms with each other.
  • When standing up the arm assembly windshield wiper, make sure to hold the arm portion. Holding the blade portion may cause the blade deformation due to warpage.
G13226474Courtesy of SUBARU OF AMERICA, INC.

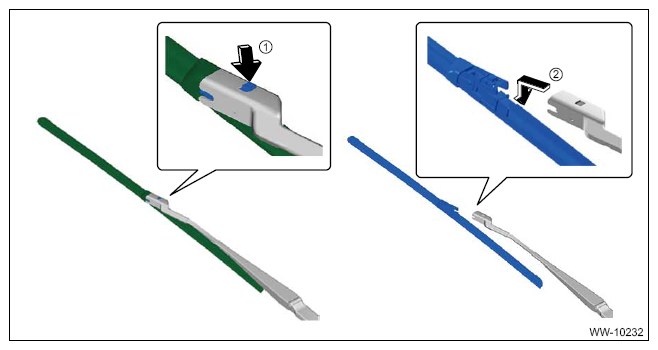

  1. Remove the blade assembly windshield wiper.
    1. Press the lock button (1).
    2. Pull the blade assembly windshield wiper in the arrow direction (2) to remove.
      G11246034Courtesy of SUBARU OF AMERICA, INC.
