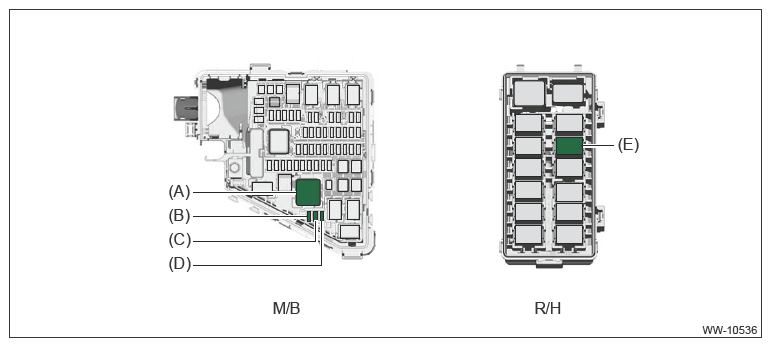

Relay and Fuse: Location
| Main fuse box (M/B) | Wiper relay | (A) |
| Fuse 30 A (front wiper, combination switch (wiper)) | (B) | |
| Fuse 15 A (front washer) | (C) | |
| Fuse 15 A (rear wiper, rear washer, headlight washer) | (D) | |
| Relay holder (R/H) | Rear wiper relay | (E) |
NOTE:
For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
