Relay and Fuse: Location

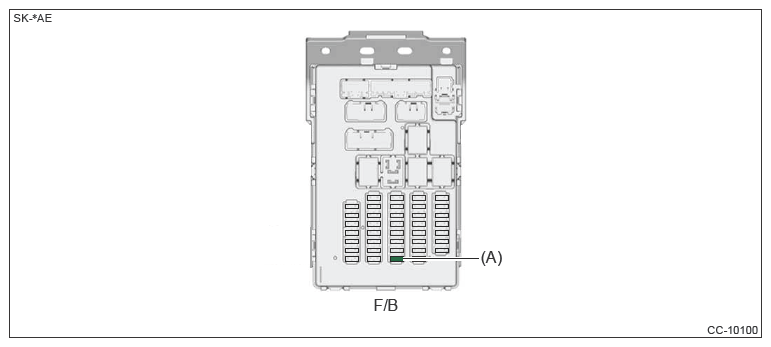

| Fuse & relay box (F/B) | Fuse 7.5 A (stop light and brake switch) | (A) |
NOTE:
For other related fuses, refer to the wiring diagram.
Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT>WIRING DIAGRAM
.
| Fuse & relay box (F/B) | Fuse 7.5 A (stop light and brake switch) | (A) |
