Home >> Subaru >> 2019 >> Forester Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System (Diagnostics) (1 Of 4) >> Diagnostic Procedure with Diagnostic Trouble Code (DTC) >> DTC P0122: Throttle/Pedal Position Sensor/Switch "A" Circuit Low >> General Description >> Component Description

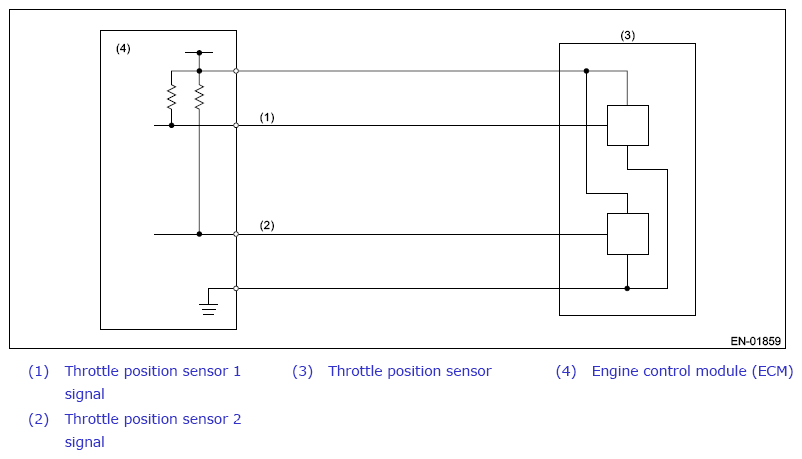

Component Description

G13227745Courtesy of SUBARU OF AMERICA, INC.
