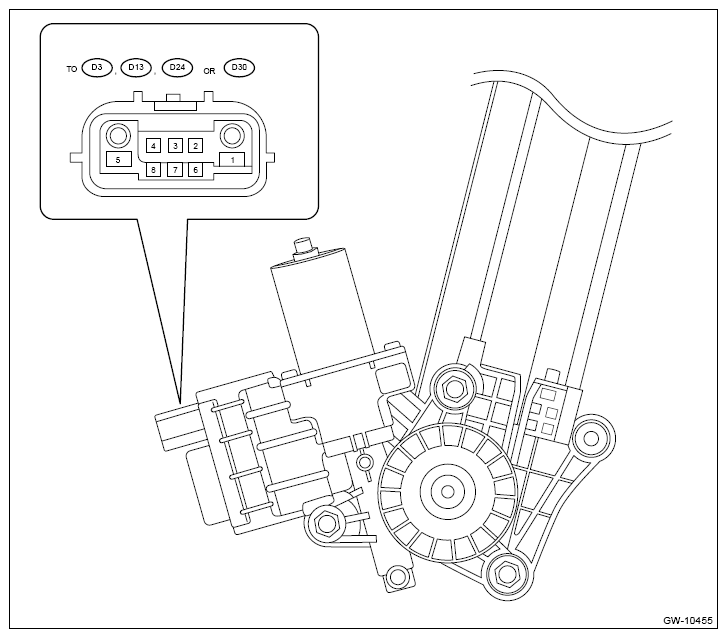

| (D3), (D13), (D24) or (D30) No. 1 ←→ Chassis ground |
GND |
Always |
Less than 1 Ω |
| (D3), (D13), (D24) or (D30) No. 2 |
- |
- |
- |
| (D3), (D13), (D24) or (D30) No. 3 ←→ Chassis ground |
SW assembly PW SUB LED output (Except for driver's seat) |
- |
- |
| (D3), (D13), (D24) or (D30) No. 4 |
SW ASSY PW AUTO operation input (Front seat only) |
- |
- |
| (D3), (D13), (D24) or (D30) No. 5 ←→ Chassis ground |
Power supply for regulator |
Always |
Battery voltage |
| (D3), (D13), (D24) or (D30) No. 6 ←→ Chassis ground |
SW assembly PW DOWN operation input |
- |
- |
| (D3), (D13), (D24) or (D30) No. 7 |
UP AND DOWN LIN signal input |
- |
- |
| (D3), (D13), (D24) or (D30) No. 8 ←→ Chassis ground |
SW assembly PW UP operation input |
- |
- |
