Front Wiper

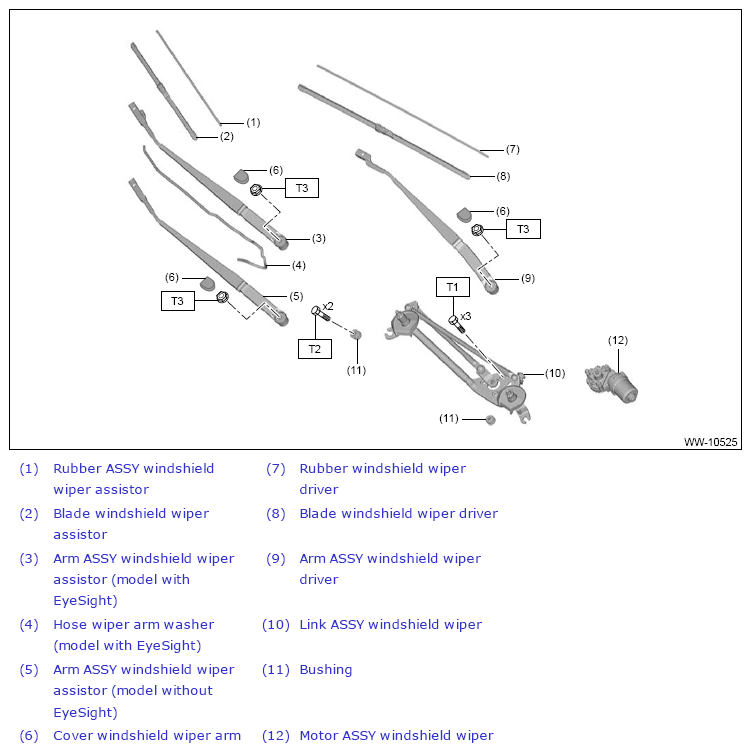

Fig 1: Front Wiper Components (With Torque Specification)

G13226450

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 6 (0.6, 4.4)

T3: 26 (2.7, 19.2)
