Oil Control Solenoid: Removal: Intake

• RH SIDE

1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the air intake duct. Refer to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .

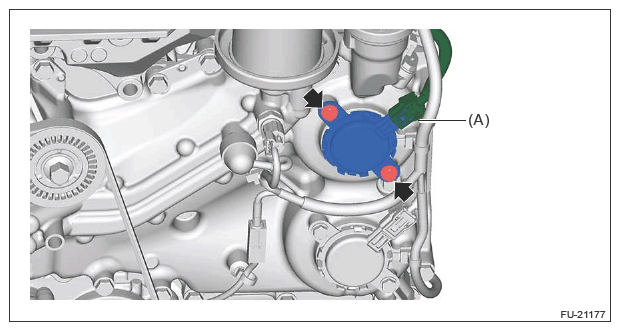

3. Disconnect the connector (A) and remove the oil control solenoid.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the backup ring from the oil control solenoid.

• LH SIDE

1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

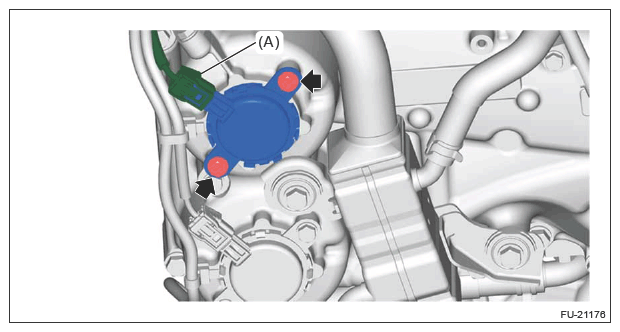

2. Disconnect the connector (A) and remove the oil control solenoid.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the backup ring from the oil control solenoid.
