Fuel Tank 3

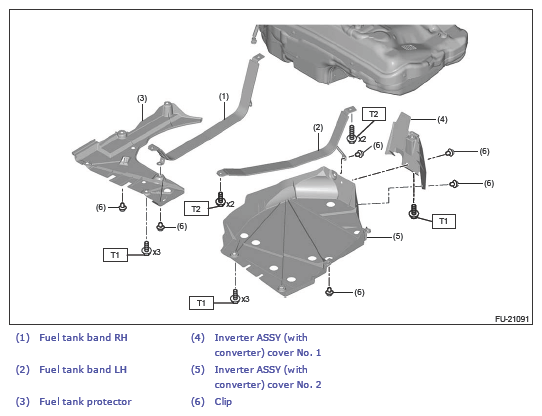

Fig 1: Fuel Tank 3 Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2:  Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL TANK>INSTALLATION .
