Engine Wiring Harness

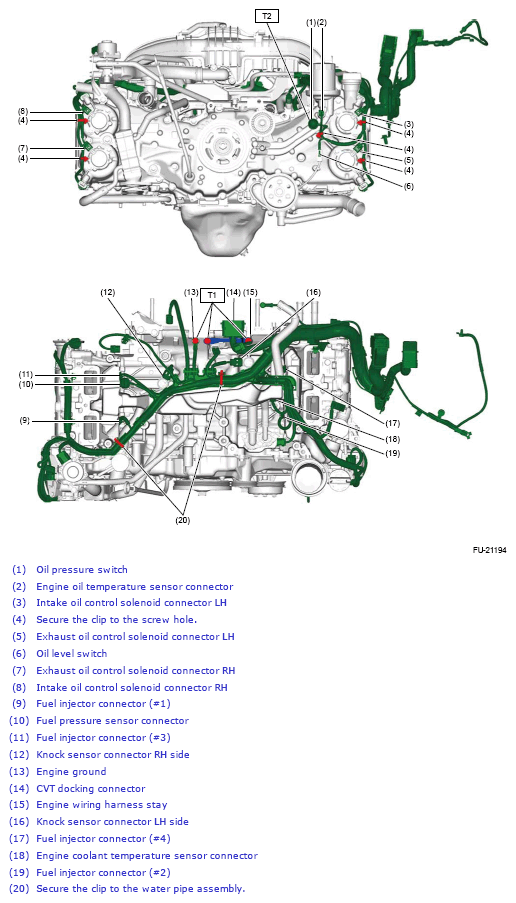

• STRUCTURAL DIAGRAM 1

Fig 1: Engine Wiring Harness Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)

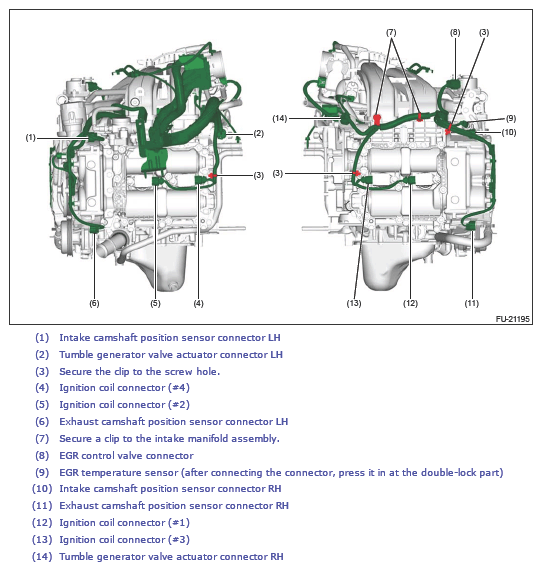

• STRUCTURAL DIAGRAM 2

Fig 2: Engine Wiring Harness Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

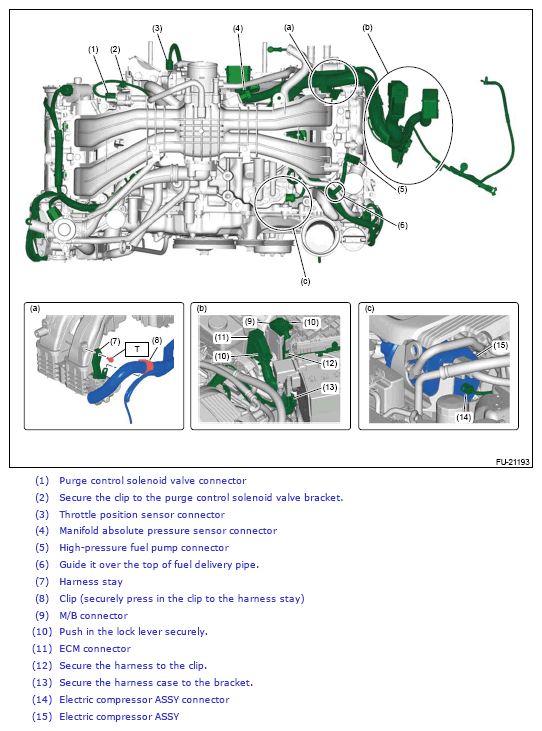

• STRUCTURAL DIAGRAM 3

Courtesy of SUBARU OF AMERICA, INC.

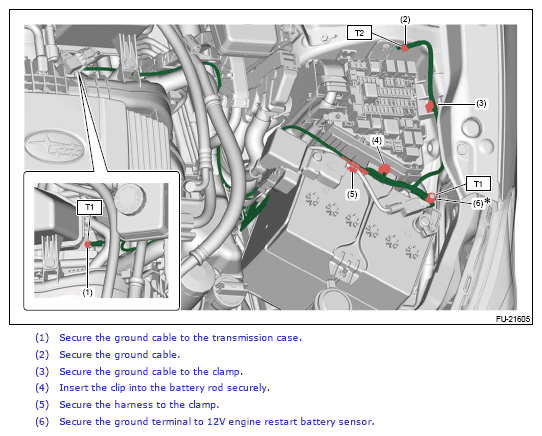

• STRUCTURAL DIAGRAM 4 (BATTERY CABLE PART)

Fig 3: Engine Wiring Harness Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 11 (1.1, 8.1)

T2: 13 (1.3, 9.6)

* If the ground terminal was removed from the 12V engine restart battery sensor, replace with a new battery sensor.
