Electrical Specification
WARNING: This page is about a different variant/trim than selected.

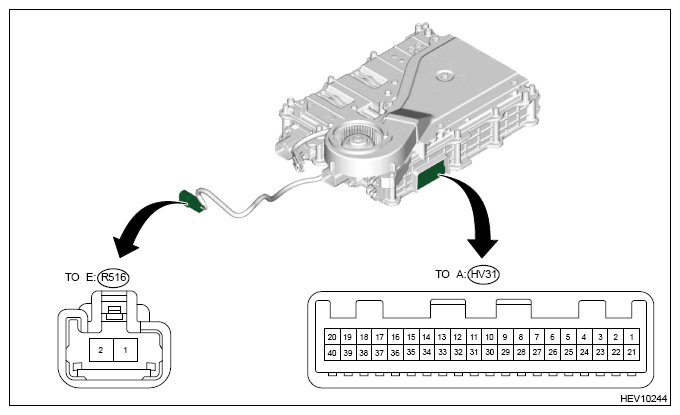

- Electric vehicle charger assembly
Terminal No. Contents Input/Output Measuring condition Standard (HV31) No. 1 (CHEN) ←→ Chassis ground Charging permission signal Input Power switch on (IG) Less than 1.5 V (HV31) No. 3 (PISW) ←→ Chassis ground Charging connector connection signal Input Power switch on (IG), electric vehicle charger c able assembly not connected 4.2 - 4.8 V Power switch on (IG), electric vehicle charger cable assembly connected and latch release button (PI switch) pressed 2.5 - 3.1 V Power switch on (IG), electric vehicle charger cable assembly connected and latch release button (PI switch) not pressed 1.2 - 1.8 V (HV31) No. 5 (CPLT) ←→ Chassis ground Charge voltage judgment and allowable amperage recognition signals Input/Output Plug-in charging Pulse generation Inverter water pump assembly signal Power switch on (IG), electric vehicle charger c able assembly not connected 2603 - 2877 Ω (HV31) No. 6 (IGCT) ←→ Chassis ground IGCT power source Input Power switch on (IG) 11 - 14 V (HV31) No. 9 (PTMS) ←→ Chassis ground Timer charging switch signal Input Power switch on (IG), timer charging switch pressed 0 - 1.5 V Power switch on (IG), timer charging switch not pressed 11 - 14 V (HV31) No. 10 (LDLP) ←→ Chassis ground Charging inlet light Output Power switch on (IG), Charging port lid closed 0 - 1.5 V Power switch on (IG), charging port lid open, conditions to turn off indicator met 11 - 14 V Power switch on (IG), charging port lid open, conditions to turn on indicator met 0 - 4.0 V (HV31) No. 11 (PIL) ←→ Chassis ground Charging indicator light Output Power switch on (IG), charging indicator light not illuminated 0 - 1.5 V Plug-in charging being performed, charging indicator light illuminated 8.0 - 14.0 V (HV31) No. 16 (CA4L) ←→ Chassis ground CAN communication signal Input/Output Power switch on (IG) Pulse generation (HV31) No. 17 (CA4H) ←→ Chassis ground CAN communication signal Input/Output Power switch on (IG) Pulse generation (HV31) No. 18 (CBMN) ←→ Chassis ground* 1 Charging connector lock motor reverse operation Output Power switch on (IG), charging connector lock/charging port lid lock not operating 0 - 1.5 V Power switch on (IG), charging connector lock/charging port lid lock operating (unlock) 10.5 - 14.0 V (HV31) No. 19 (CA1L) ←→ Chassis ground CAN communication signal Input/Output Power switch on (IG) Pulse generation (HV31) No. 20 (CA1H) ←→ Chassis ground CAN communication signal Input/Output Power switch on (IG) Pulse generation (HV31) No. 28 (LDSW) ←→ Chassis ground Charging lid courtesy switch signal Input Power switch on (IG), charging port lid closed 0 - 1.5 V Power switch on (IG), charging port lid open 11 - 14 V (HV31) No. 30 (CBSW) ←→ Chassis ground* 1 Charging connector lock detection switch signal Input Power switch on (IG), charging connector lock pin extended 0 - 1.5 V Power switch on (IG), charging connector lock pin not extended 4.5 - 5.5 V (HV31) No. 31 (LDO1) ←→ Chassis ground Charging lid lock switch Input Power switch on (IG), push lifter of charging lid courtesy switch pushed in 0 - 1.5 V Power switch on (IG), push lifter of charging lid courtesy switch extended 11 - 14 V (HV31) No. 32 (CBO) ←→ Chassis ground* 1 Charging connector lock/unlock switch Input Power switch on (IG), charging connector lock/unlock switch (EV charger lid indicator assembly) operated 0 - 1.5 V Power switch on (IG), charging connector lock/unlock switch (EV charger lid indicator assembly) not operated 11 - 14 V (HV31) No. 33 (FTLS) ←→ Chassis ground Charger cooling blower speed signal Input Charger cooling blower operating (Plug-in charging being performed, value of Data List item "PFC Boosting Circuit Temperature" or "DC/DC Converter Temperature (for Charging)" 55°C (131°F) or more) Pulse generation (HV31) No. 34 (FCTL) ←→ Chassis ground Charger cooling blower operation signal Output Charger cooling blower operating (Plug-in charging being performed, value of Data List item "PFC Boosting Circuit Temperature" or "DC/DC Converter Temperature (for Charging)" 55°C (131°F) or more) Pulse generation (HV31) No. 36 (FANB) ←→ Chassis ground Charger cooling blower power source Output Charger cooling blower operating (Plug-in charging being performed, value of Data List item "PFC Boosting Circuit Temperature" or "DC/DC Converter Temperature (for Charging)" 55°C (131°F) or more) Maximum 1.28 V (HV31) No. 37 (FANG) ←→ Chassis ground Cooling fan body ground Output Power switch on (IG) 0 - 1.5 V (HV31) No. 38 (CBMP) ←→ Chassis ground(1) 1 Charging connector lock motor forward operation Output Power switch on (IG), charging connector lock/charging port lid lock not operating 0 - 1.5 V Power switch on (IG), charging connector lock/charging port lid lock operating (lock) 10.5 - 14.0 V (R516) No. 1 (AMD2) ←→ Chassis ground Sub DC/DC Output Always 11 - 14 V (1) Charge cable connector locking system
