Special Tool
WARNING: This page is about a different car, the 2019 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Subaru Select Monitor
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS - SUBARU SELECT MONITOR 4 Used for setting of each function and troubleshooting for electrical system. NOTE: For detailed operation procedures, refer to "Help" of application. - TEST HARNESS Y
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299AG040 TEST HARNESS Y Used for troubleshooting seat belt buckle switch. - TEST HARNESS AE
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA030 TEST HARNESS AE TEST HARNESS Y adapter harness. Used for troubleshooting seat belt buckle switch. - TEST HARNESS AB
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA000 TEST HARNESS AB Used when measuring voltage and resistance of occupant detection system. - TEST HARNESS BB
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299FL020 TEST HARNESS BB Used when measuring voltage and resistance of occupant detection system. - TEST HARNESS BC
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299FL030 TEST HARNESS BC Used when measuring voltage and resistance of occupant detection system.
Two sets may be required. - TEST HARNESS BD

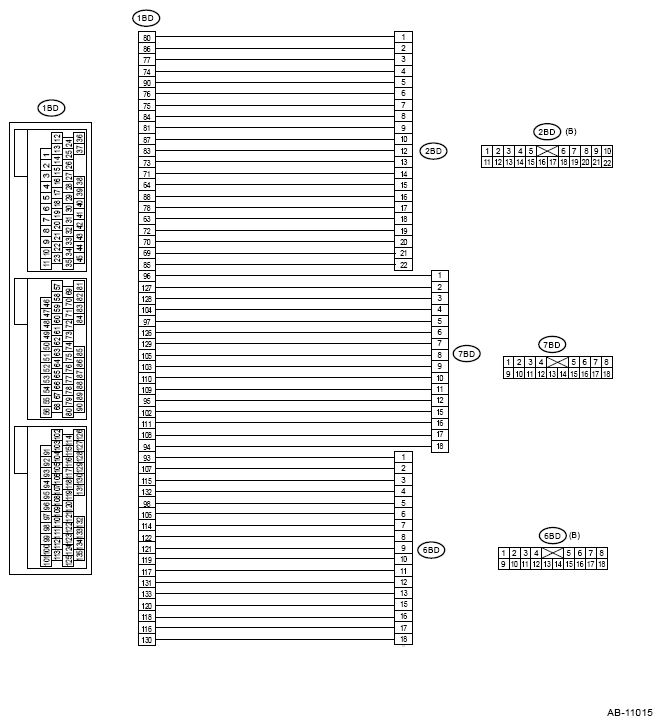

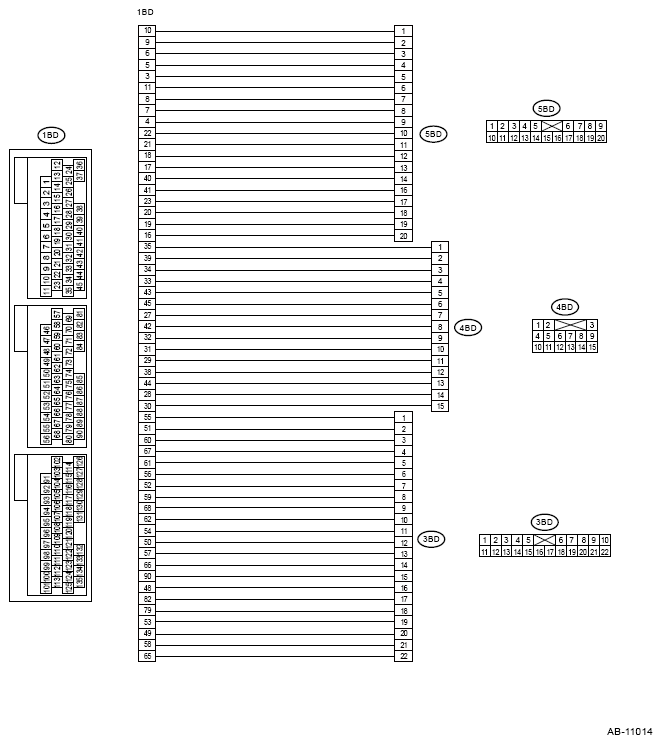

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XC000
(Newly adopted tool)TEST HARNESS BD Used when measuring voltage and resistance of airbag control module. - TEST HARNESS D

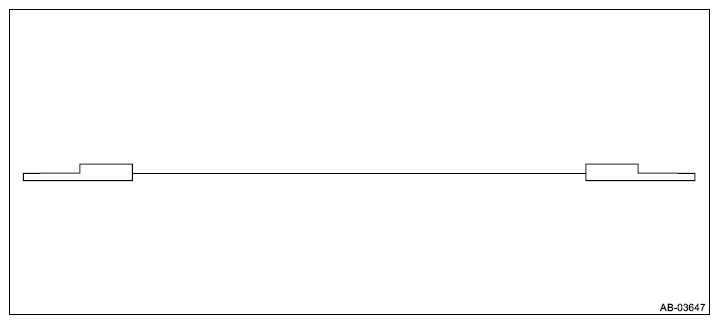

| ILLUSTRATION | TOOL NUMBER | DESCRIPTION | REMARKS |
|---|---|---|---|
| 98299AG060 | TEST HARNESS D | Used for troubleshooting seat belt buckle switch. |
