Front Disc Brake

WARNING: This page is about a different car, the 2019 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

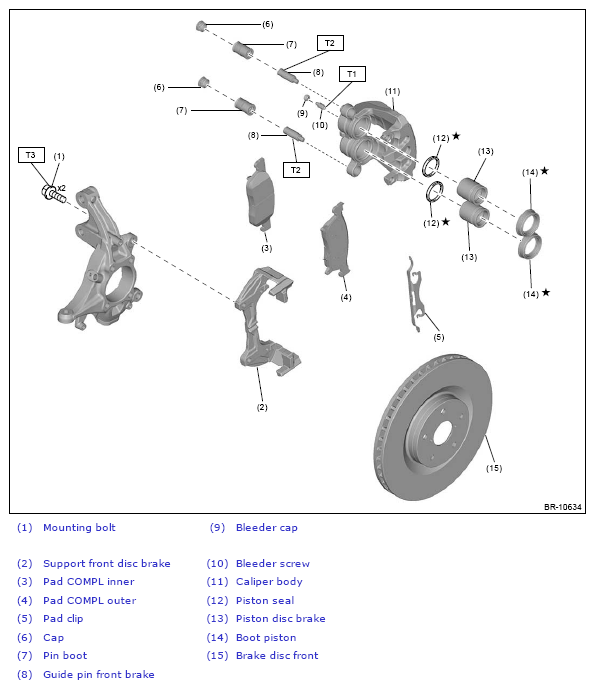

Fig 1: Front Disc Brake Components Location (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17 (1.7, 12.5)

T2: 55 (5.6, 40.6)

T3: 142 (14.5, 104.7)
