Check With Measuring Devices

WARNING: This page is about a different car, the 2019 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

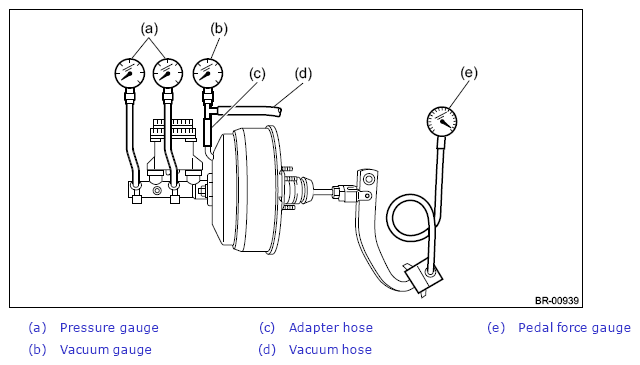

Connect a measuring device as shown in the figure. After bleeding air from the pressure gauge, perform each check.

G13199776Courtesy of SUBARU OF AMERICA, INC.
