Engine Cooling System

WARNING: This page is about a different car, the 2019 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

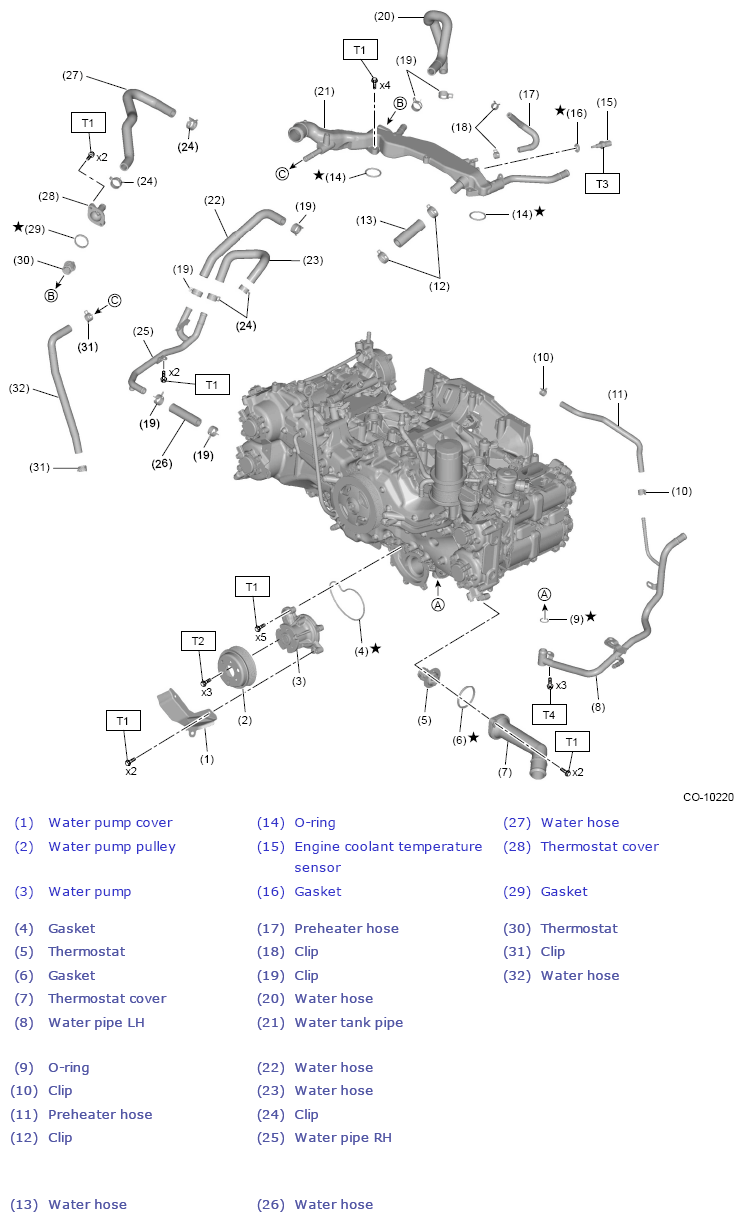

Fig 1: Engine Cooling System Components Location (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 14 (1.4, 10.3)

T3: 16 (1.6, 11.8)

T4 : Ref. to COOLING (H4DOTC)>WATER PIPE>INSTALLATION .
