Front Exhaust Pipe: Removal

CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
  1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the under cover - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support - rear LH. Refer to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Disconnect the front oxygen (A/F) sensor connector, rear oxygen sensor connector and the ground cord.
    G11253533Courtesy of SUBARU OF AMERICA, INC.
  5. Separate the front exhaust pipe and rear exhaust pipe.
    G11253535Courtesy of SUBARU OF AMERICA, INC.

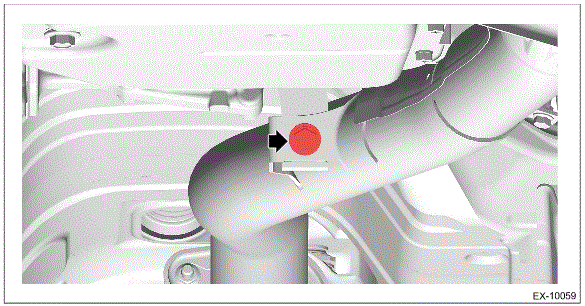

  6. Remove the bolt which holds front exhaust pipe to hanger bracket.
    G13230498Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the front exhaust pipe.
    CAUTION: The front exhaust pipe is very heavy. Be careful not to drop it when removing.
    • Except for hybrid model
      G13224642Courtesy of SUBARU OF AMERICA, INC.
    • Hybrid model
    G13230500Courtesy of SUBARU OF AMERICA, INC.
