Component With Torque Specifications

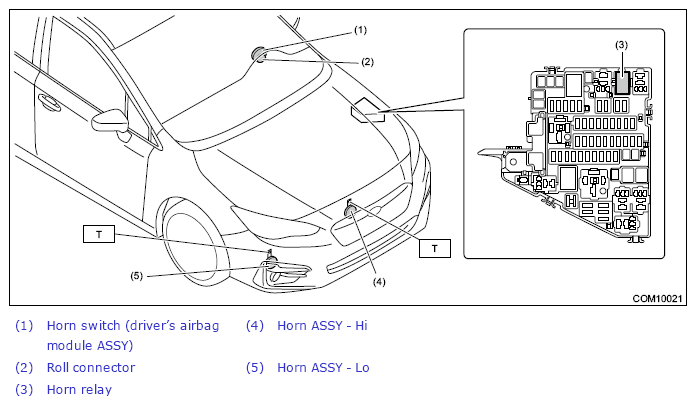

Fig 1: Horn Components (With Torque Specification)

G13234763

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
