Rear Seat

EXCEPT FOR HYBRID MODEL

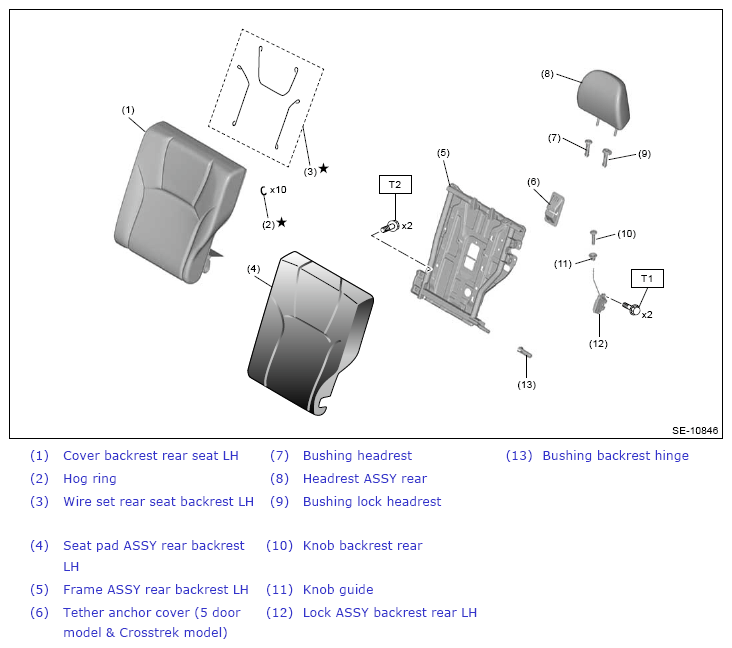

Fig 1: Rear Seat Components (With Torque Specification) - Except For Hybrid Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 24.5 (2.5, 18.1)

T3: 29 (3.0, 21.4)

T4: 33 (3.4, 24.3)

Crosstrek model

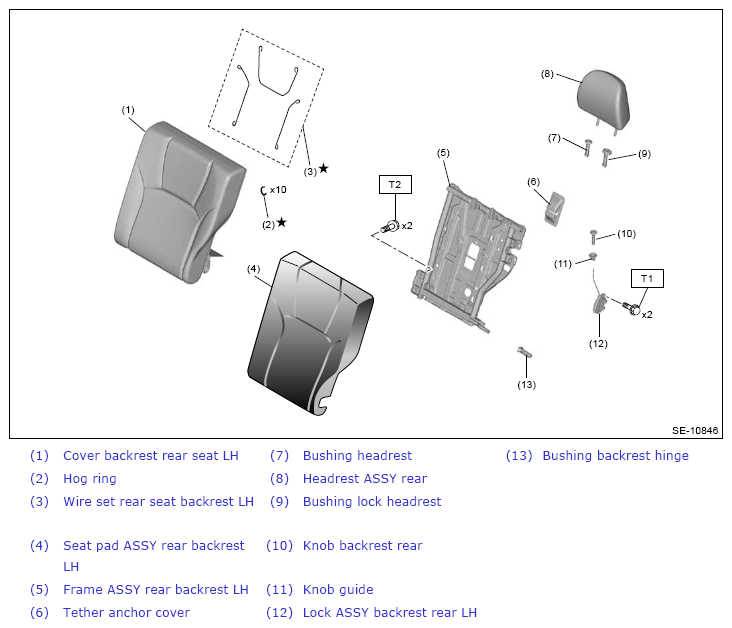

Fig 2: Rear Seat Components (With Torque Specification) - Crosstrek Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 24.5 (2.5, 18.1)

T3: 29 (3.0, 21.4)

T4: 33 (3.4, 24.3)

Impreza model

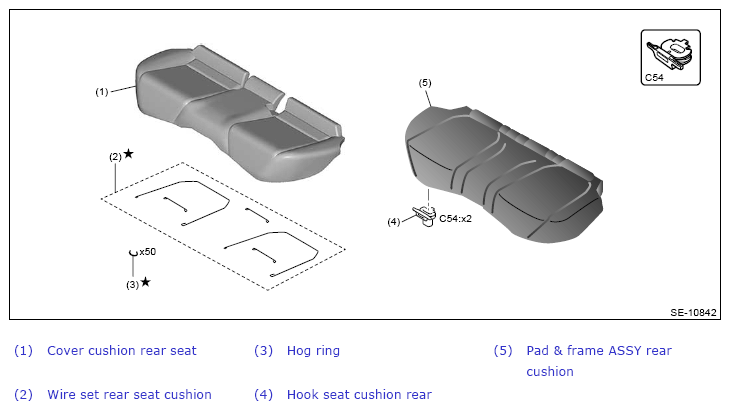

Fig 3: Rear Seat Components (With Torque Specification) - Impreza Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

Crosstrek model

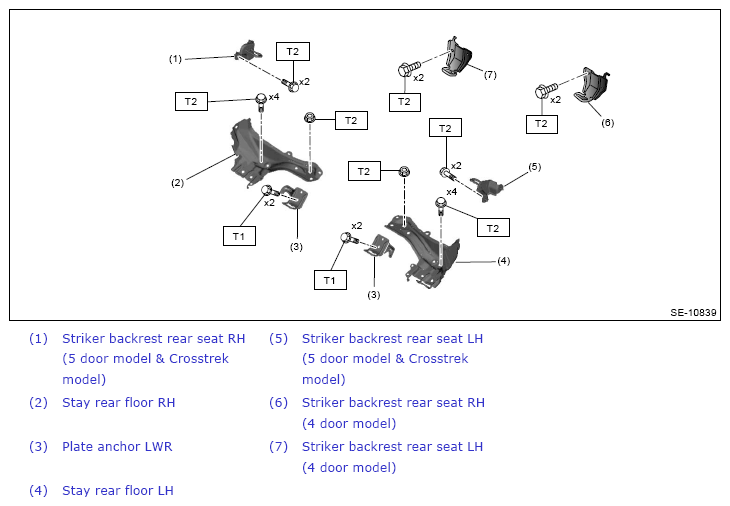

Fig 4: Rear Seat Components (With Torque Specification) - Crosstrek Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

Impreza model

Courtesy of SUBARU OF AMERICA, INC.

Crosstrek model

Courtesy of SUBARU OF AMERICA, INC.

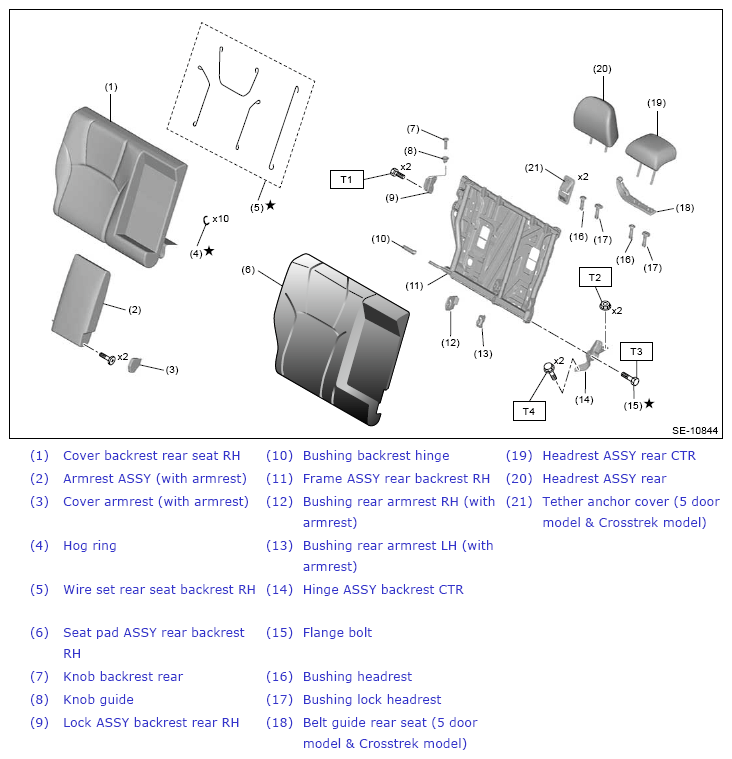

Fig 5: Rear Seat Components (With Torque Specification) - Crosstrek Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 33 (3.4, 24.3)

HYBRID MODEL

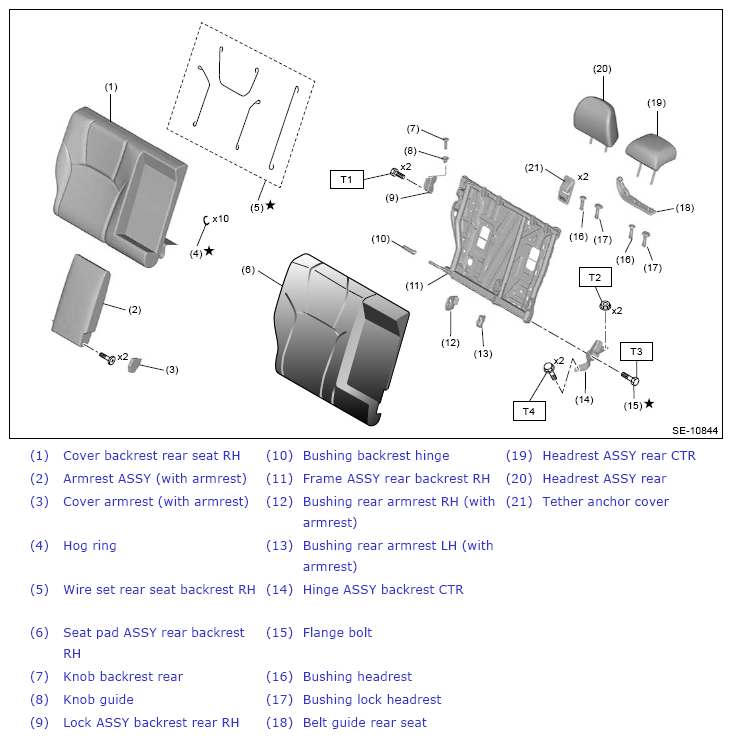

Fig 6: Rear Seat Components (With Torque Specification) - Hybrid Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 24.5 (2.5, 18.1)

T3: 33 (3.4, 24.3)

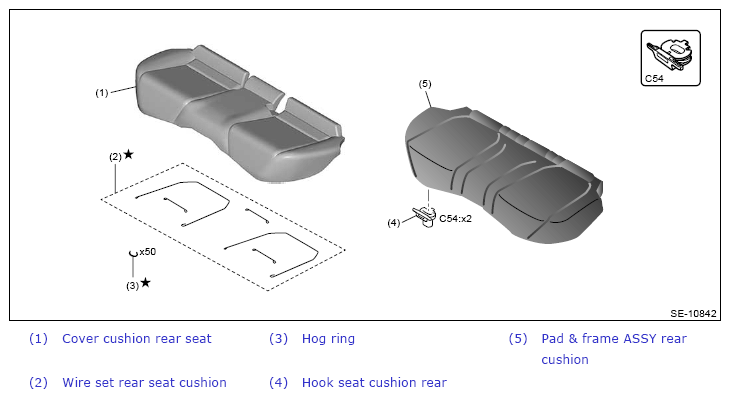

Fig 7: Rear Seat Components (With Torque Specification) - Hybrid Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

Courtesy of SUBARU OF AMERICA, INC.

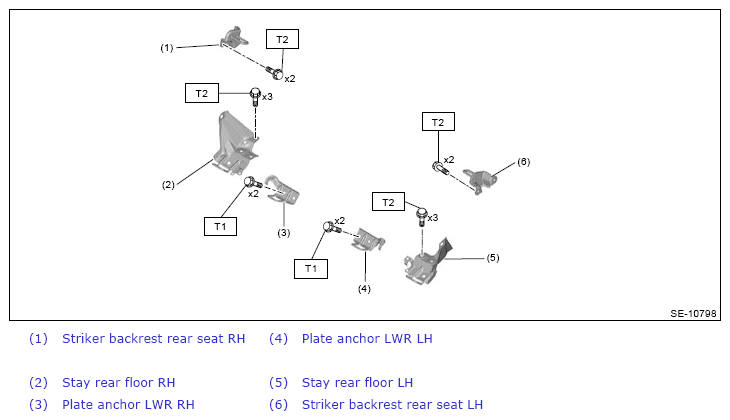

Fig 8: Rear Seat Components (With Torque Specification) - Hybrid Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 33 (3.4, 24.3)
