Front Seat

Manual seat LH (Impreza model)

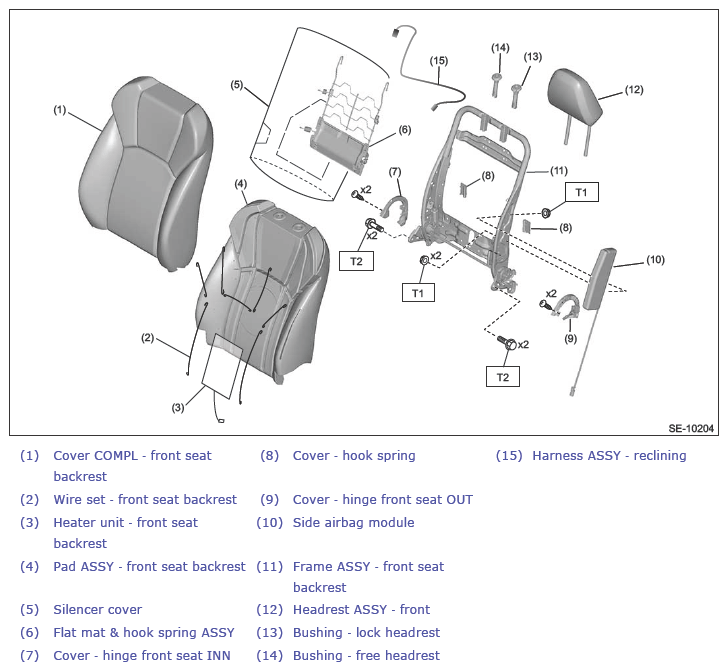

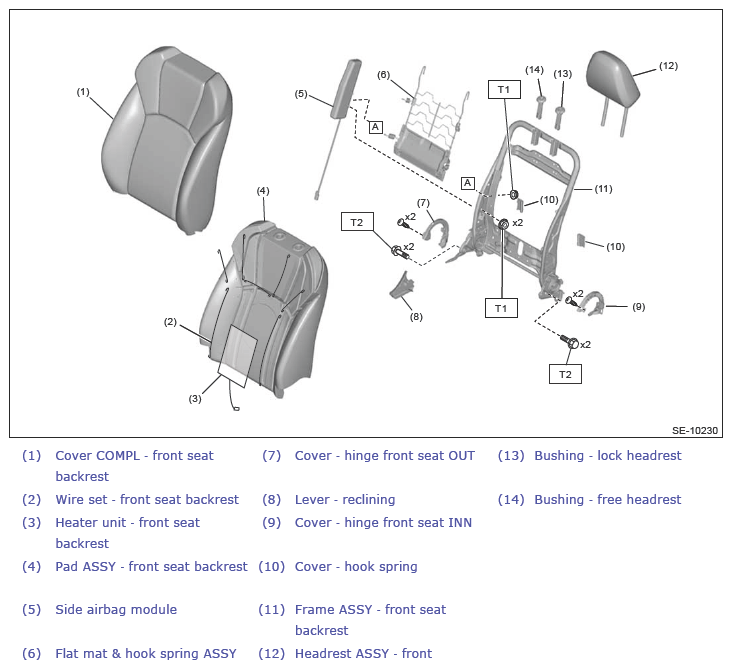

Fig 1: Front Seat Components (With Torque Specification) - Manual Seat LH (Impreza Model; 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

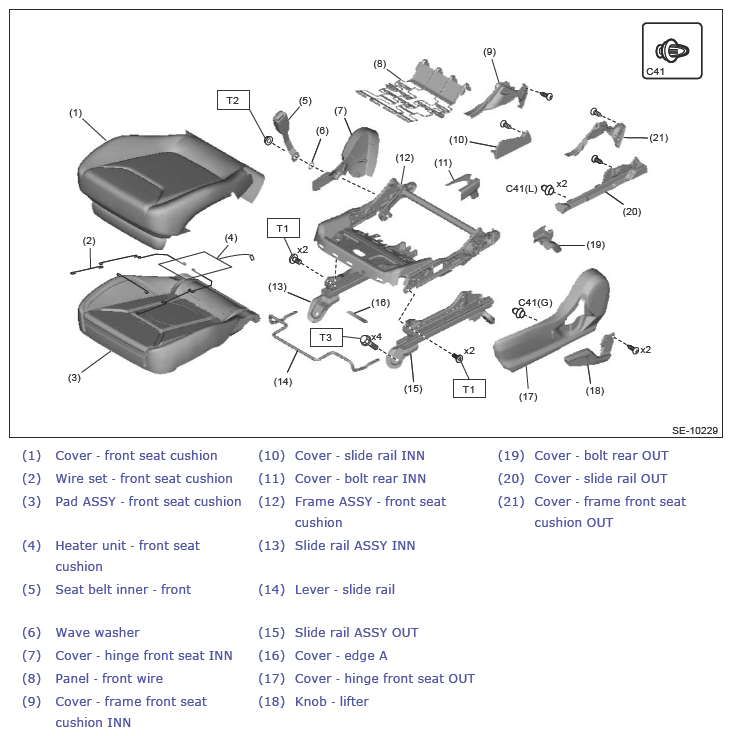

Fig 2: Front Seat Components (With Torque Specification) - Manual Seat LH (Impreza Model; 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13)

T2: 38 (3.9, 28)

T3: 53 (5.4, 39.1)

Manual seat LH (Crosstrek model)

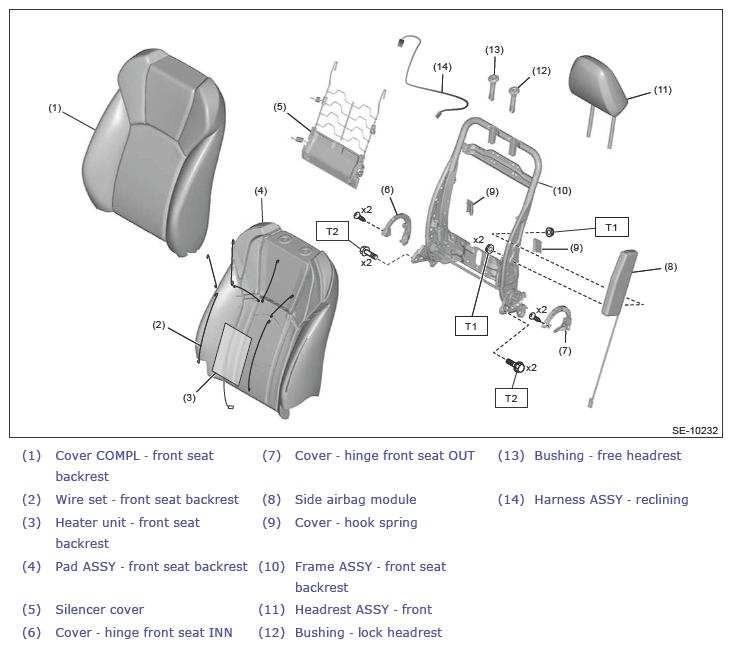

Fig 3: Front Seat Components (With Torque Specification) - Manual Seat LH (Crosstrek Model; 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

Fig 4: Front Seat Components (With Torque Specification) - Manual Seat LH (Crosstrek Model; 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13)

T2: 38 (3.9, 28)

T3: 53 (5.4, 39.1)

Manual seat RH (Impreza model)

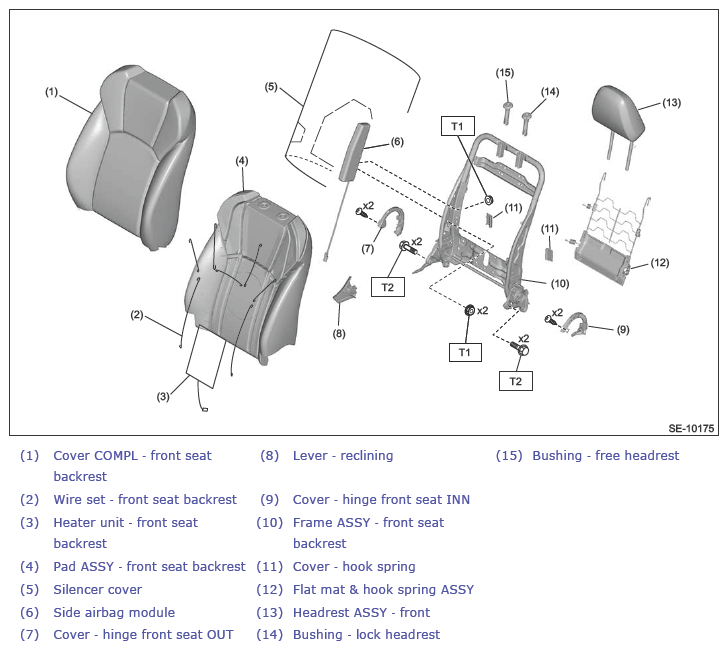

Fig 5: Front Seat Components (With Torque Specification) - Manual Seat RH (Impreza Model; 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

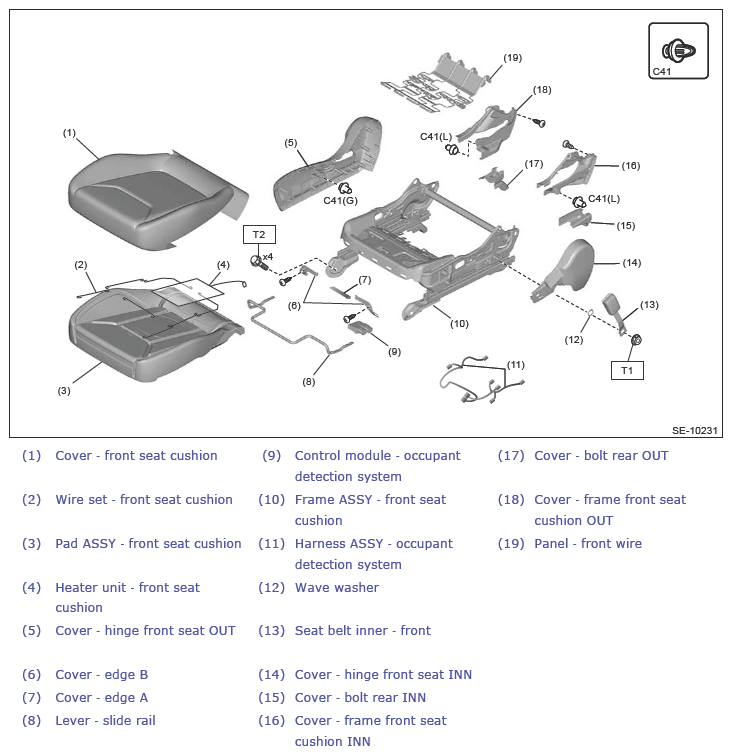

Fig 6: Front Seat Components (With Torque Specification) - Manual Seat RH (Impreza Model; 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 53 (5.4, 39.1)

NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.

Manual seat RH (Crosstrek model)

Fig 7: Front Seat Components (With Torque Specification) - Manual Seat RH (Crosstrek Model; 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

Fig 8: Front Seat Components (With Torque Specification) - Manual Seat RH (Crosstrek Model; 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 53 (5.4, 39.1)

NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.

Power seat (Impreza model)

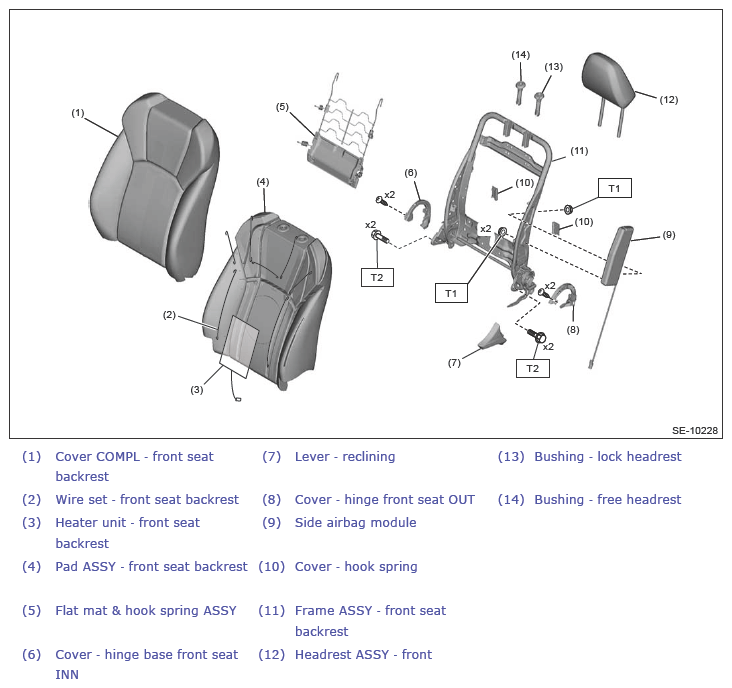

Fig 9: Front Seat Components (With Torque Specification) - Power Seat (Impreza Model; 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

Fig 10: Front Seat Components (With Torque Specification) - Power Seat (Impreza Model; 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 53 (5.4, 39.1)

Power seat (Crosstrek model)

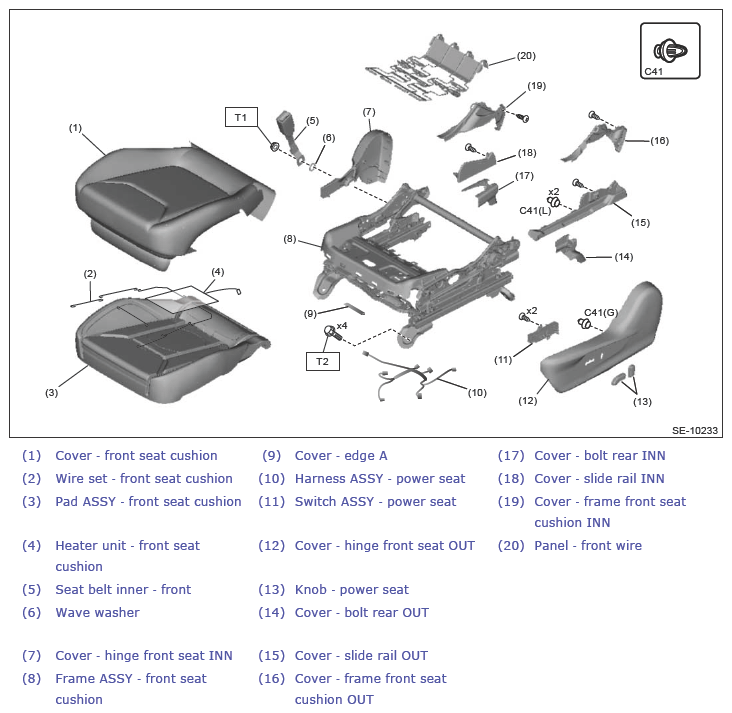

Fig 11: Front Seat Components (With Torque Specification) - Power Seat (Crosstrek Model; 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

Fig 12: Front Seat Components (With Torque Specification) - Power Seat (Crosstrek Model; 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 53 (5.4, 39.1)
