Relay and Fuse: Location

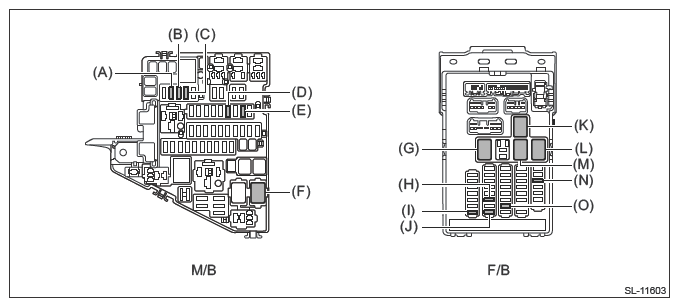

- Except for hybrid model

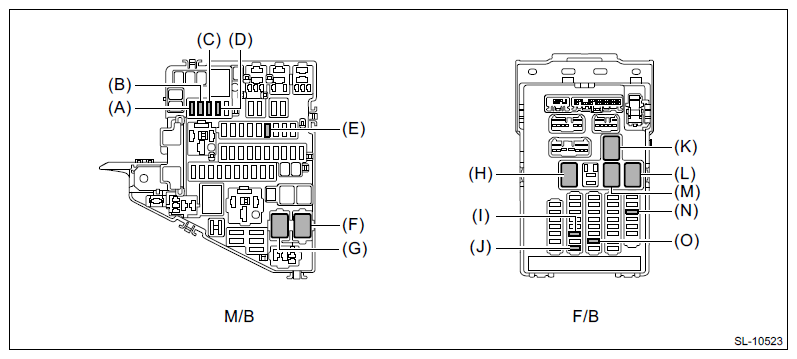

Main fuse box (M/B) Fuse 10 A (body integrated unit) (A) Fuse 10 A (body integrated unit) (B) Fuse 10 A (body integrated unit) (C) Fuse 10 A (body integrated unit) (D) Fuse 15 A (body integrated unit) (E) Starter cut relay (F) Starter relay (G) Relay & fuse box (F/B) IG 2 relay (H) Fuse 10 A (body integrated unit, immobilizer antenna) (I) Fuse 7.5 A (key warning switch, keyless access Control Module, steering lock Control Module) (J) IG 1 relay (K) Accessory relay 1 (L) Accessory relay 2 (M) Fuse 7.5 A (body integrated unit, immobilizer antenna) (N) Fuse 7.5 A (body integrated unit) (O) - Hybrid model
| Main fuse box (M/B) | Fuse 10 A (body integrated unit) | (A) |
| Fuse 10 A (body integrated unit) | (B) | |
| Fuse 10 A (body integrated unit) | (C) | |
| Fuse 15 A (body integrated unit) | (D) | |
| Fuse 7.5 A (central gateway Control Module) | (E) | |
| Fuel flap relay | (F) | |
| Relay & fuse box (F/B) | IG 2 relay | (G) |
| Fuse 10 A (body integrated unit) | (H) | |
| Fuse 10 A (refueling request switch, fuel flap status switch) | (I) | |
| Fuse 7.5 A (keyless access Control Module, steering lock Control Module) | (J) | |
| IG 1 relay | (K) | |
| Accessory relay 1 | (L) | |
| Accessory relay 2 | (M) | |
| Fuse 7.5 A (body integrated unit) | (N) | |
| Fuse 7.5 A (body integrated unit) | (O) |
NOTE:
For other related fuses, refer to the wiring diagram.
- Impreza model: Refer to WIRING SYSTEM (IMPREZA MODEL)>POWER SUPPLY CIRCUIT .
- Crosstrek model (except for hybrid): Refer to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>POWER SUPPLY CIRCUIT .
- Crosstrek hybrid model: Refer to WIRING SYSTEM (CROSSTREK MODEL (HEV))>POWER SUPPLY CIRCUIT .
