Transmission Control Module

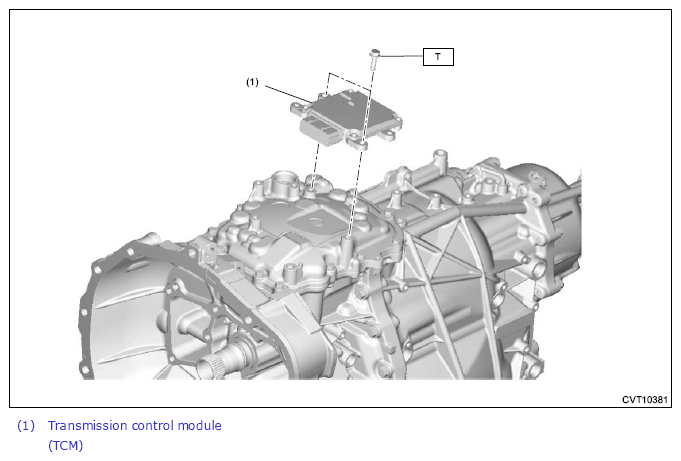

Fig 1: Transmission Control Module Components (With Torque Specifications)
G13232461Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7 (0.7, 5.2)
