12V Engine Restart Battery Sensor

WARNING: This page is about a different variant/trim than selected.

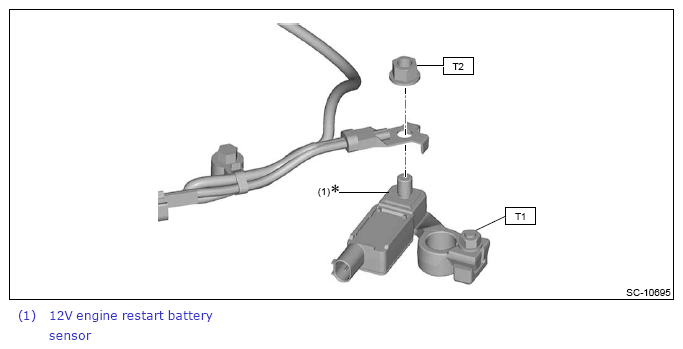

Fig 1: 12V Engine Restart Battery Sensor (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 11 (1.1, 8.1)

* If the ground terminal was removed from the 12V engine restart battery sensor, replace with a new battery sensor.
