Except For Hybrid Model

• V-BELT

1. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to remove the V-belt as shown in the figure.
   CAUTION:

   • When reusing the V-belt, wipe off dust and water with cloth.
   • Do not use the V-belt if there is any oil, grease or coolant on the belt.
   • Be careful not to rub the V-belt end surface with bare hands; exposed core may cause injury.
   • Wipe off any dust, oil and water on the groove of each pulley with cloth.

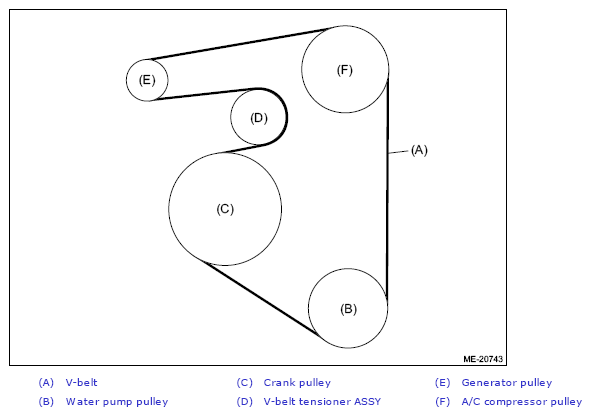

   Fig 1: Engine Drive Belt Routing Diagram (Except For Hybrid)

   Courtesy of SUBARU OF AMERICA, INC.
2. When working on the vehicle
   NOTE: When working on the vehicle, perform the following steps also.
   1. Install the V-belt cover.

   Tightening torque:

   7 N.m (0.7 kgf-m, 5.2 ft-lb)

• V-BELT TENSIONER ASSEMBLY

1. The V-belt tensioner assembly is replaced.
   NOTE: When replacing the V-belt tensioner assembly, also perform the following steps.
   1. Set the V-belt tensioner assembly to be discarded on a vice.

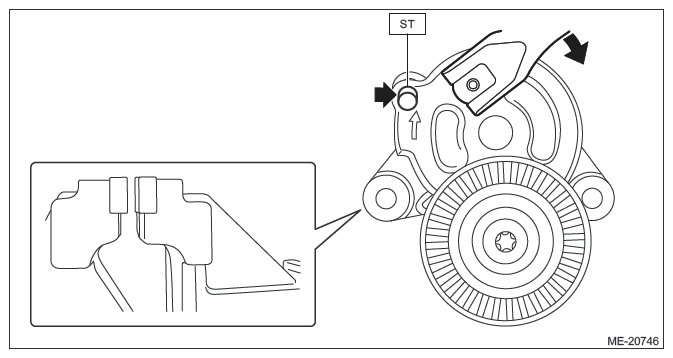

   2. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to remove the ST or 5 mm hex wrench.

   Courtesy of SUBARU OF AMERICA, INC.

2. Install the V-belt tensioner assembly.

   Tightening torque:

   19 N.m (1.9 kgf-m, 14.0 ft-lb)

3. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to remove the ST or 5 mm hex wrench.
4. Install the V-belts. Refer to MECHANICAL (H4DO (EXCEPT FOR HEV))>V-BELT>INSTALLATION>EXCEPT FOR HYBRID MODEL .
