Remote Opener

• 4 door model

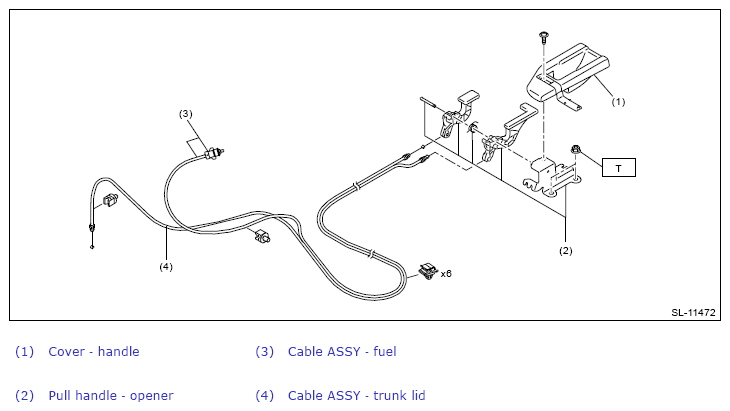

  Fig 1: Remote Opener Components (With Torque Specification) - 4 Door Model

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 7.5 (0.8, 5.5)

• 5 door model (except for hybrid)

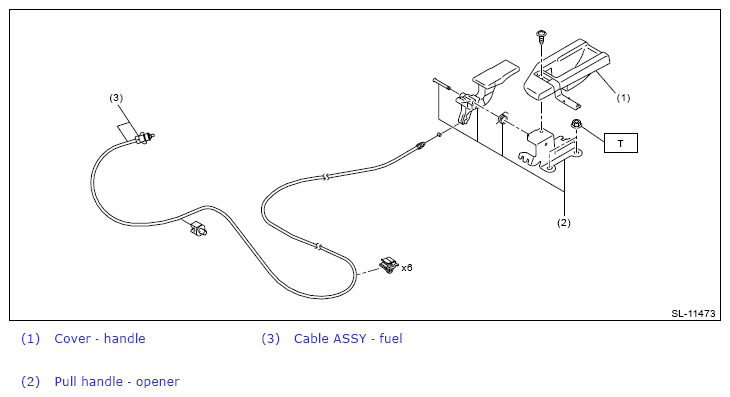

Fig 2: Remote Opener Components (With Torque Specification) - 5 Door Model (Except For Hybrid)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
