Exploded View

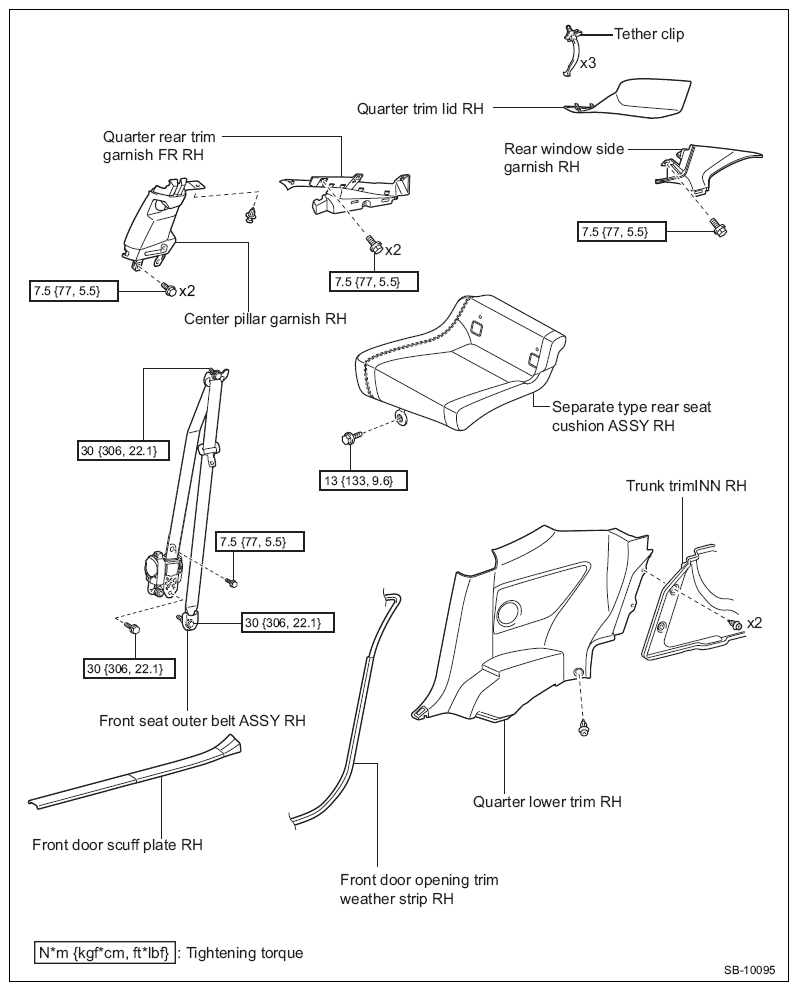

Fig 1: Front Seat Outer Belt Assembly Components With Torque Specification

G12591525

Courtesy of SUBARU OF AMERICA, INC.
